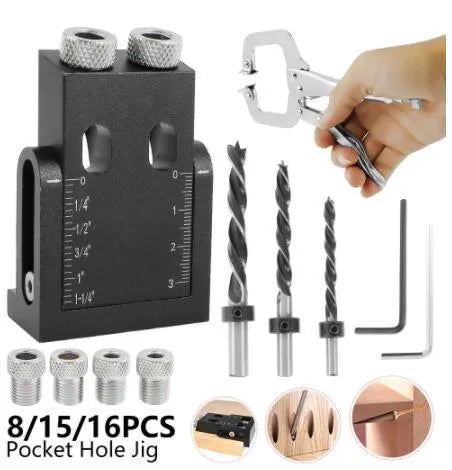

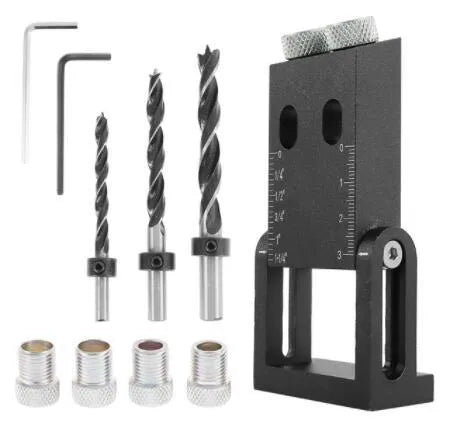

Aluminium alloy woodworking perforation locator with 15-degree angle for dowel hole alignment

This perforation locator tool provides a dedicated solution for woodworkers and DIY enthusiasts needing to create accurately aligned dowel holes when connecting wood boards. Its primary function is to ensure that holes for dowels or biscuits are positioned correctly so that assembled pieces join flush and square, which is fundamental for strong, professional-looking cabinets, furniture frames, and shelving units. The tool's construction from aluminium alloy offers a balance of lightness and necessary rigidity, while the 15-degree angled design improves usability in tight corners or against large workpieces. Supplied with a practical selection of three sleeves and five drill bits, it covers common dowel sizes for a variety of wood joinery tasks.

Features and Construction

The tool is built around its core function of locating and guiding drill holes for woodworking connections. Its design incorporates specific elements to aid precision and user handling during the marking and drilling process.

Material and Build

The perforation locator is fabricated from aluminium alloy, a material chosen for its favourable strength-to-weight ratio. This construction means the tool is robust enough to maintain its shape and alignment under pressure during use without being excessively heavy to handle. The black colour provides a consistent, professional finish. The alloy material also resists corrosion better than plain steel, which is beneficial in a workshop environment where it may encounter moisture from wood or the air.

Size and Practical Fit

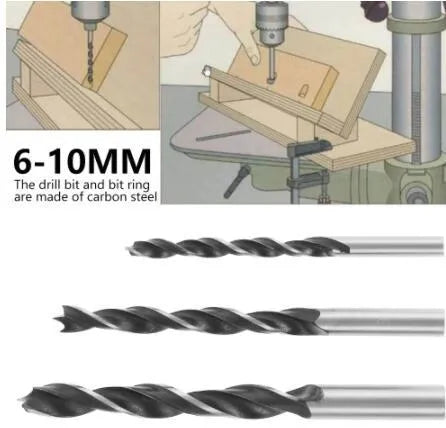

The tool's key dimensional feature is its 15-degree working angle. This angle is not arbitrary; it is designed to allow the tool body to sit at an optimal position against workpiece edges, providing clearance for the user's hand and the drill. The included accessories define its operational range: three sleeves with internal diameters of 6mm, 8mm, and 10mm correspond to standard dowel sizes. The five supplied drill bits (6mm, 7mm, 8mm, 9mm, and 10mm) offer flexibility, allowing you to drill a slightly smaller pilot hole or match the dowel size exactly, depending on your wood and glue preferences.

Uses and Placement

This tool is intended for scenarios where two pieces of wood need to be joined with hidden mechanical strength, a common requirement in both professional cabinetmaking and serious DIY projects.

Event or Professional Use

For professional joiners, carpenters, or furniture makers, consistency and speed are critical. This locator allows for the rapid, repeatable marking of dowel hole centres across multiple identical joints, such as when producing a batch of cabinet doors or assembling a series of bookcase sides. The aluminium build ensures it can withstand daily use in a busy workshop. The range of sleeve and bit sizes means a single tool can handle different project requirements, from lighter 6mm dowels in delicate frames to stronger 10mm dowels in structural components.

Everyday Home Use

For the home DIYer tackling shelving units, bed frames, or garden furniture, achieving perfectly aligned dowel holes can be challenging without a dedicated guide. This tool eliminates guesswork and reduces the risk of misaligned holes that ruin a workpiece. The 15-degree angle makes it easier to see your marking point and hold the tool steady, even when working on larger boards alone. Using the correct sleeve ensures the drill bit starts exactly where intended, leading to a cleaner build process and a more satisfying, professional-looking end result on personal projects.

Benefits and Buying Value

The value of this tool lies in its specific function and the practical set of components provided, which together address a common woodworking challenge.

Reuse and Low Maintenance

As a metal tool, it is designed for reuse over many projects. The aluminium alloy construction requires minimal maintenance; simply wiping it down after use keeps it free from sawdust and resin build-up that could affect its accuracy. The sleeves and drill bits are standard items, meaning the drill bits can be sharpened or replaced independently if worn, and the tool itself does not contain complex mechanisms that might fail. This makes it a long-lasting addition to a toolkit.

Why Choose This Product

This perforation locator offers a focused solution compared to more generic marking methods. While you could attempt to mark dowel holes with a ruler and pencil, this tool physically registers against the workpiece edges, inherently improving accuracy for a stronger joint. The inclusion of three sleeve sizes and five drill bits in the package means you receive a ready-to-use set, avoiding the need to source compatible bits separately. For anyone regularly working with dowel joinery, it provides a reliable, time-saving method to improve the quality and consistency of their wood board connections.
