1.3-inch IPS LCD Colour Display Module with 240x240 Resolution for DIY Electronics

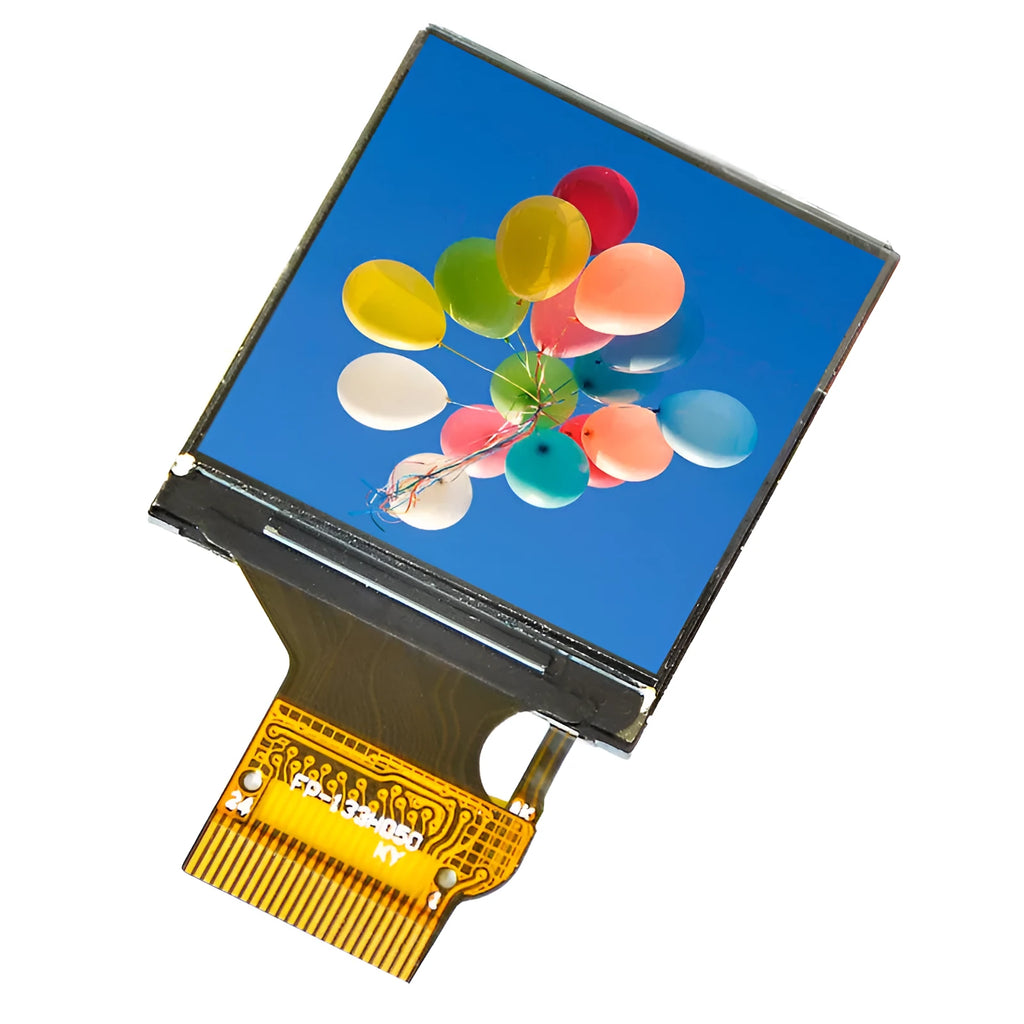

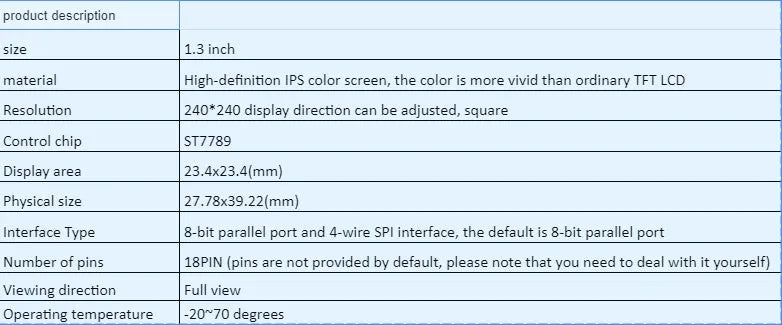

For makers, tinkerers, and electronics developers, integrating a clear and colourful visual interface into a project often requires a compact yet capable display. This 1.3-inch plug-in LCD module meets that need directly. It combines a high-definition IPS (In-Plane Switching) screen, which delivers more vivid colours and a wider viewing angle than standard TFT LCDs, with a practical 240x240 pixel square resolution. Driven by the capable ST7789 control chip, the module offers both an 8-bit parallel port and a 4-wire SPI serial interface, providing flexibility for connection to various microcontrollers and development boards like Arduino or Raspberry Pi. Its small physical footprint and defined operational parameters make it a suitable component for portable devices, sensor readouts, custom instrumentation, or compact user interfaces.

Features and Construction

This display module is built around specific, measurable components that define its performance and application. Its construction is focused on delivering a reliable visual output in a small form factor suitable for embedded systems.

Material and Build

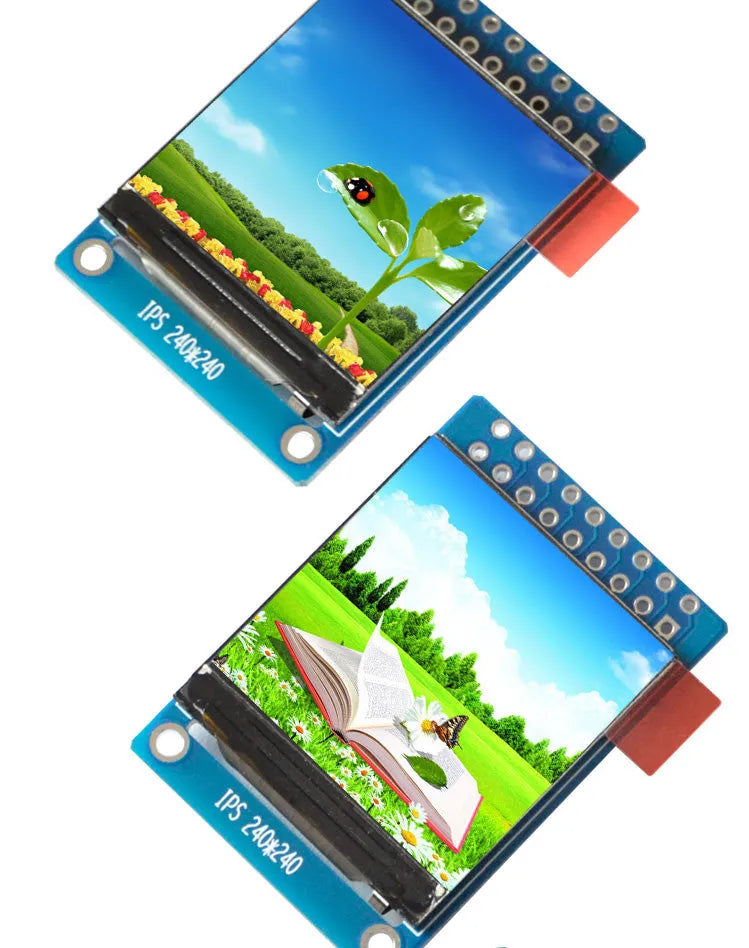

The core visual component is a high-definition IPS (In-Plane Switching) LCD panel. The practical relevance of an IPS screen, compared to a standard TFT, is its ability to maintain colour consistency and image clarity across a wider viewing angle. This means the display remains readable even when viewed from the side, which is advantageous for devices that might be viewed from different positions. The panel is housed within a module that measures 27.78mm in width and 39.22mm in length, creating a compact package. The 18-pin connection footprint on the module provides the electrical interface, though it is important to note that the physical pins for soldering are not supplied and must be obtained separately.

Size and Practical Fit

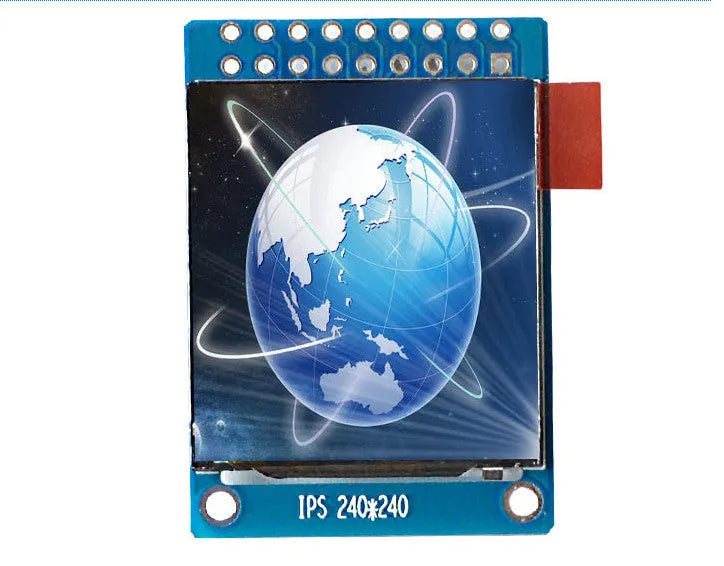

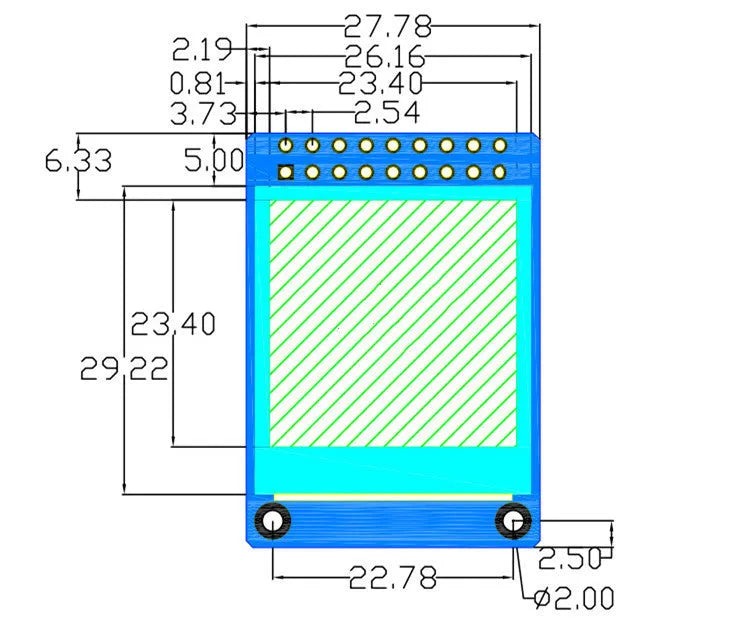

The module's dimensions are precisely defined: its total physical size is 27.78mm by 39.22mm. The actual area where pixels are active, known as the display area, is a square measuring 23.4mm on each side. This 1.3-inch diagonal screen size packs 240 pixels horizontally and 240 pixels vertically into that space, resulting in a detailed square image. This combination of a small outer casing and a high-resolution active area allows it to be integrated into projects where space is at a premium without sacrificing screen clarity. The square aspect ratio is well-suited for displaying icons, data visualisations, or symmetric user interface elements.

Uses and Placement

The technical specifications of this module directly inform its potential applications. Its interface options and robust operating range make it versatile for both hobbyist and more demanding environments.

Event or Professional Use

In professional prototyping or product development scenarios, this display can serve as a reliable component for custom equipment interfaces. Its support for both 8-bit parallel and SPI communication protocols allows engineers to choose the interface that best matches their system's available pins and required data speed. The specified operating temperature range of -20°C to 70°C indicates it can function in environments that are not climate-controlled, making it suitable for field-deployed sensor units, industrial control panels, or automotive data displays where temperature fluctuations occur.

Everyday Home Use

For electronics hobbyists and DIY enthusiasts, this module is an accessible way to add a quality screen to home projects. It can be used to create a display for a smart home controller, a retro gaming console, a weather station readout, or a status monitor for a 3D printer. The adjustable display direction feature means the screen image can be rotated to match the physical orientation of the project enclosure. Its plug-in nature means it can be easily connected to popular development boards, though users must be prepared to solder their own pins or headers to the module's 18-pad connector.

Benefits and Buying Value

The value of this product lies in its defined specifications and the practical advantages they provide for someone building an electronic device, rather than in intangible claims.

Reuse and Low Maintenance

As a core electronic component, the display module is designed for integration into a larger system. Its value for reuse comes from its standardised interfaces; a project built around the SPI interface, for example, could potentially be adapted to use a different display with the same protocol. The module itself requires no ongoing maintenance. Its longevity in a project is supported by its solid-state construction and defined operating limits, which should be respected to ensure reliable performance over time.

Why Choose This Product

Choosing this specific display module is a decision based on its concrete attributes. The 1.3-inch IPS screen offers a tangible improvement in viewing angle and colour vibrancy over basic TFT options at a similar size. The dual-interface capability provides immediate flexibility, allowing you to select the simplest connection method for your microcontroller. The clearly stated dimensions (27.78mm x 39.22mm) and display area (23.4mm square) enable accurate planning for your project's enclosure or front panel. For anyone needing a small, colour screen with a known set of technical parameters, this module presents a clearly specified and functional solution.
