Volvo Engine Timing Special Tool Kit: 8-Piece Master Set for Cylinder Head Alignment

This comprehensive Volvo timing tool kit is engineered for professional mechanics and serious DIY technicians working on a broad spectrum of Volvo petrol and diesel engines. Its primary function is to provide exact alignment of the camshaft(s), cylinder head, and crankshaft during the critical procedures of cylinder head assembly removal and installation. By ensuring these components are correctly positioned before final assembly, the toolset helps prevent costly damage caused by misaligned timing, such as bent valves or piston impact. The kit's specified compatibility covers Volvo models from the classic 700 series through to the modern XC90, making it a valuable, model-focused investment for any workshop frequently servicing these vehicles.

Features and Construction

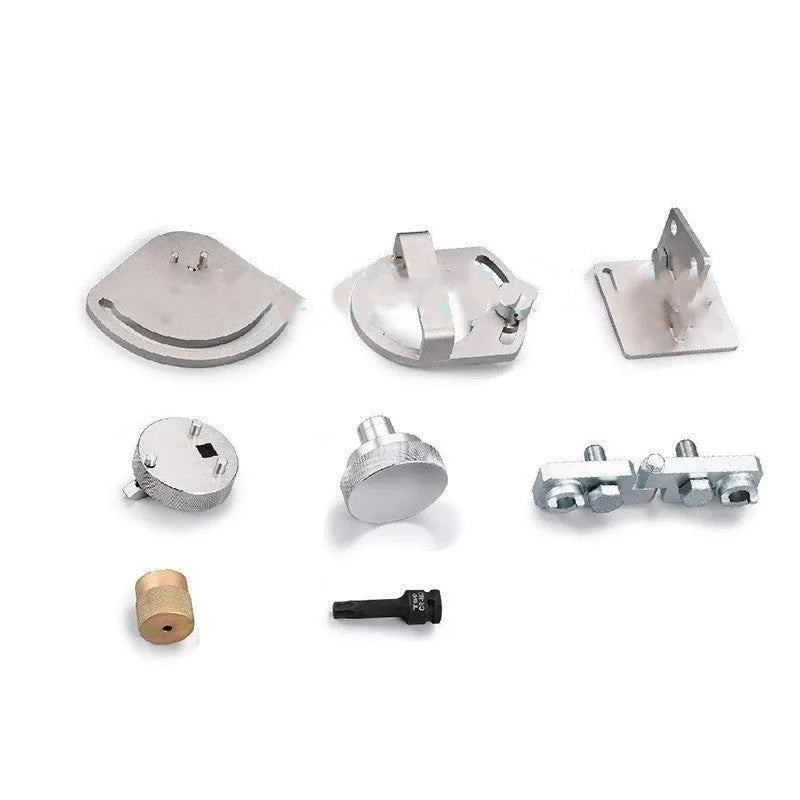

The toolset is defined by its targeted application and robust construction, delivering the necessary precision for engine internals without superfluous items. Each of the eight tools has a specific role in the timing procedure, from locking the camshafts in place to aligning the crankshaft at top dead centre. This focused design streamlines complex repair jobs, reducing the risk of error and the time spent on trial-and-error methods with improvised tools.

Material and Build

Fabricated from carbon steel, the tools offer the strength and durability required to handle the forces involved in adjusting and securing engine components. This material choice is practical for workshop environments where tools must withstand regular use. The construction is purpose-driven, with each tool shaped to interface correctly with the specific machining and bolt patterns found on Volvo 4-, 5-, and 6-cylinder engine blocks and cylinder heads.

Size and Practical Fit

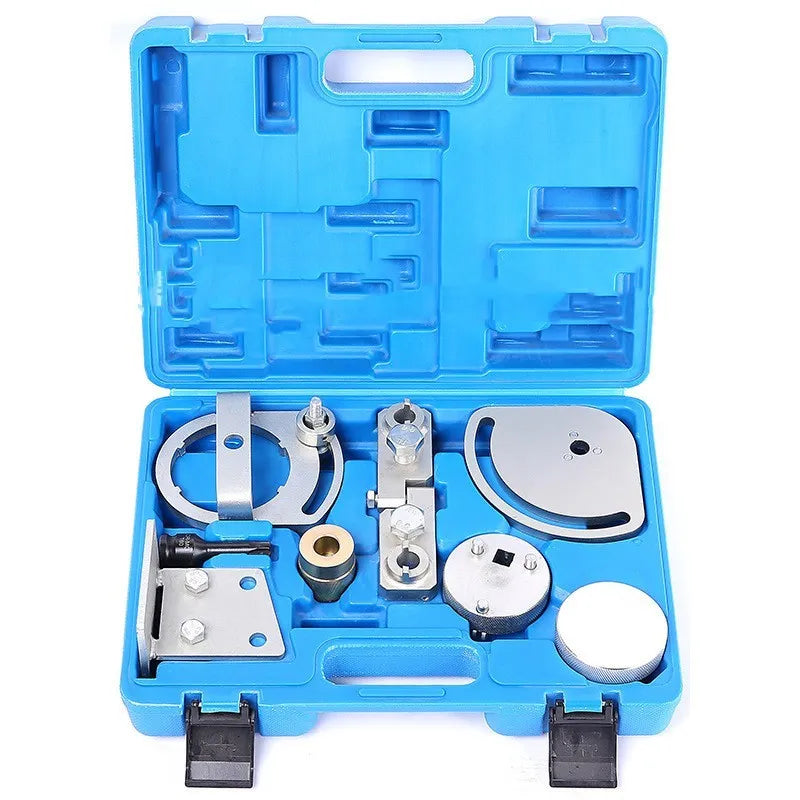

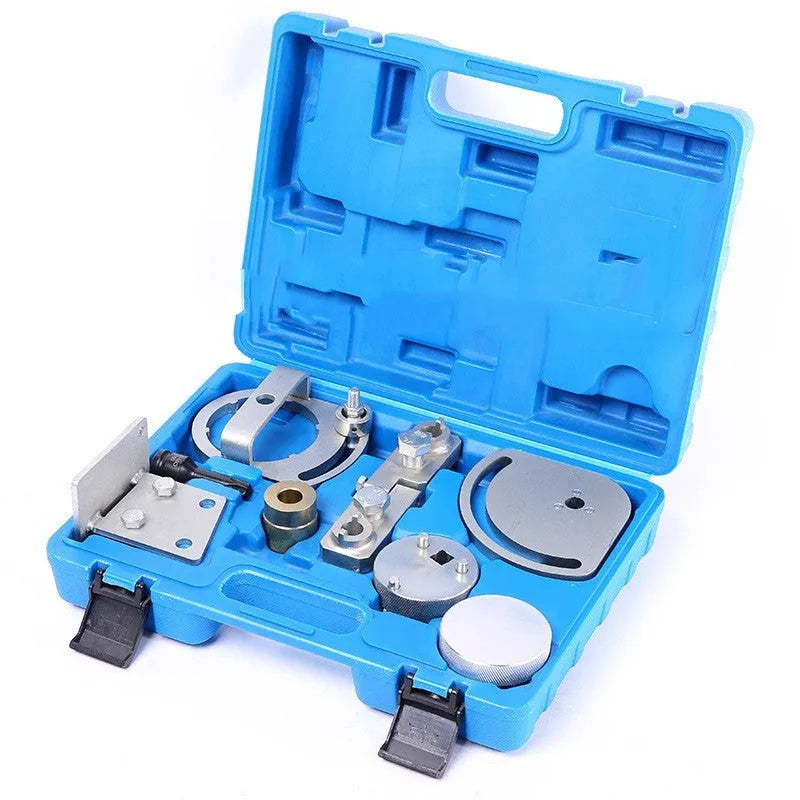

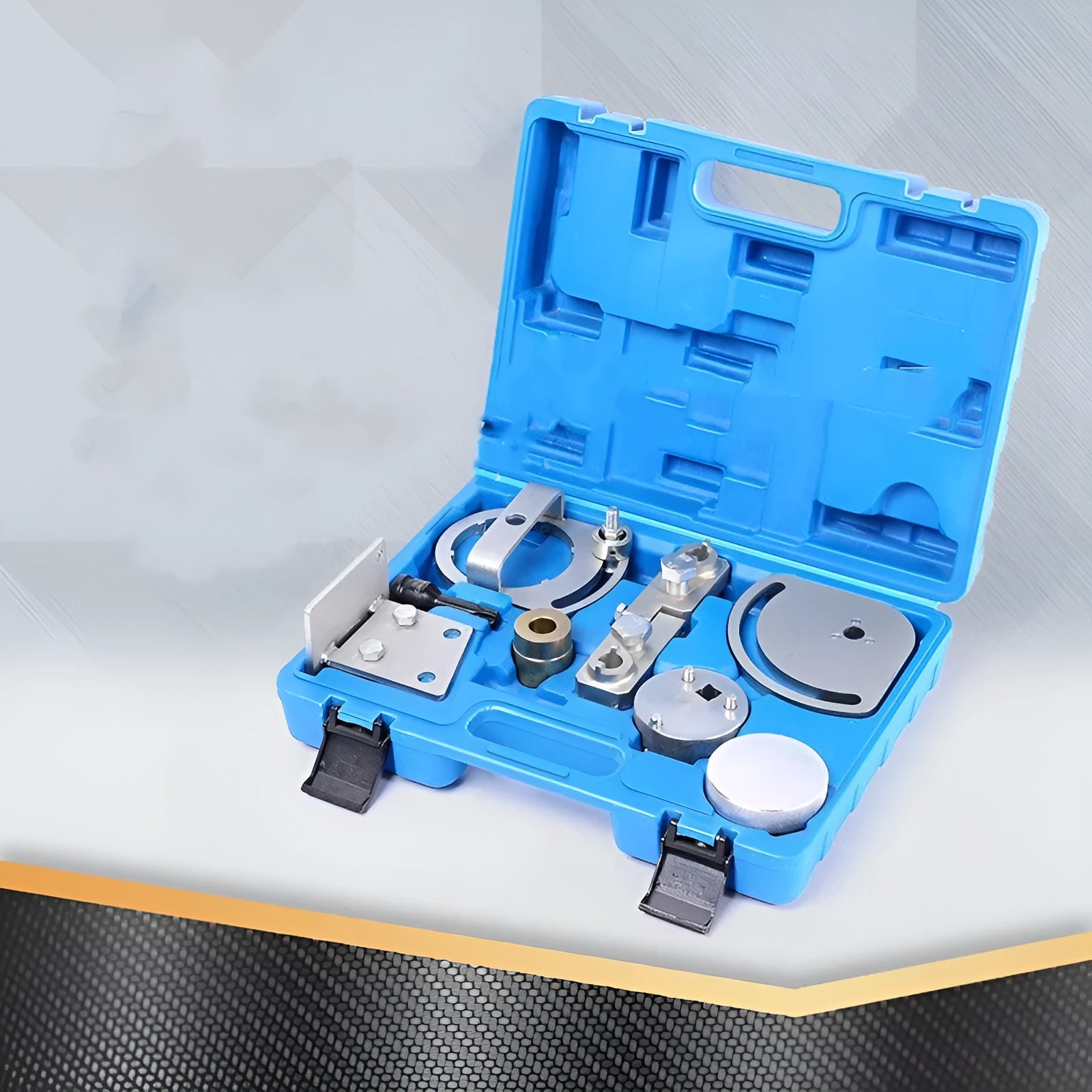

The complete set is housed within a case measuring 37 cm by 28 cm by 11 cm, providing a compact and organised storage solution that keeps all tools together. This size makes it easy to store on a workshop shelf or in a tool cabinet. The tools themselves are sized to fit the confined spaces around the engine block and cylinder head, allowing for practical application without unnecessary bulk that could hinder access during repair work.

Uses and Placement

This toolset finds its place in scenarios where engine timing integrity is paramount. It is not a general-purpose mechanic's set but a specialist instrument for a specific family of engines, which dictates its primary use cases in both professional and advanced DIY settings.

Event or Professional Use

In a professional automotive repair workshop, this kit is essential for efficiently performing major engine service, head gasket replacement, or timing belt/chain renewal on the listed Volvo models. It allows a technician to follow manufacturer-recommended procedures accurately, ensuring the job is done right the first time. This can increase workshop throughput and provide customers with confidence that the repair adheres to precise engineering tolerances.

Everyday Home Use

For the knowledgeable home mechanic undertaking a major project on their own Volvo vehicle, this toolset transforms a potentially daunting task into a manageable one. It provides the correct factory-specified tools to safely lock the engine's timing before disassembly, preventing catastrophic internal engine damage. Its use is recommended for projects like replacing a timing belt, servicing the cylinder head, or changing camshaft seals, where precise alignment is critical for the engine to run correctly afterwards.

Benefits and Buying Value

The value of this tool kit lies in its focused functionality and the practical problems it solves for anyone working on compatible Volvo engines. It represents a pragmatic purchase aimed at enabling correct repair procedures rather than offering superficial advantages.

Reuse and Low Maintenance

As a set of solid steel tools, it is designed for repeated reuse across multiple repair jobs on the same or different Volvo vehicles within its compatibility range. There are no consumable parts or complex mechanisms to maintain; simple cleaning and occasional lubrication of moving parts, if any, are all that's required to keep the kit in serviceable condition for years.

Why Choose This Product

Choosing this Volvo-specific timing tool kit over generic alignment tools or makeshift methods provides assurance of fit and function. It eliminates guesswork and reduces the risk of causing expensive damage during engine work. For anyone regularly engaging with these Volvo engines, it pays for itself by enabling accurate, confident repairs and preventing the errors that can lead to further breakdowns and labour costs.
