Mini-360 Ultra-Small DC-DC Buck Converter: Compact 17x11mm Voltage Regulation Module

The Mini-360 DC-DC buck converter is an ultra-small power supply module designed for electronic projects and systems where physical space is at a premium. As a non-isolated synchronous rectification buck module, its primary function is to efficiently step down a higher DC input voltage to a lower, stable DC output voltage. With external dimensions of just 17mm in length, 11mm in width, and 3.8mm in height, it provides a viable power regulation solution for densely packed circuit boards, portable devices, and custom enclosures where traditional larger converters cannot be accommodated. The module accepts a wide input range from 4.75V to 23V and allows the user to adjust the output voltage from 1.0V to 17V, making it a versatile component for powering microcontrollers, sensors, LEDs, and other low-voltage circuits from common battery packs or power adapters.

Features and Construction

The Mini-360's design prioritises a combination of compact size and electrical efficiency. Its construction is centred around key integrated components that enable its performance within the minimal footprint.

Material and Build

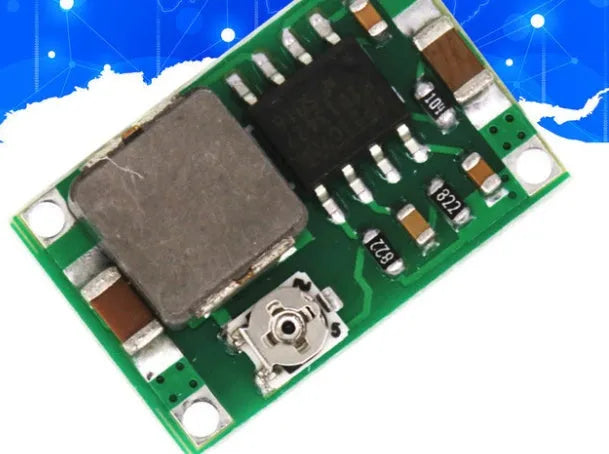

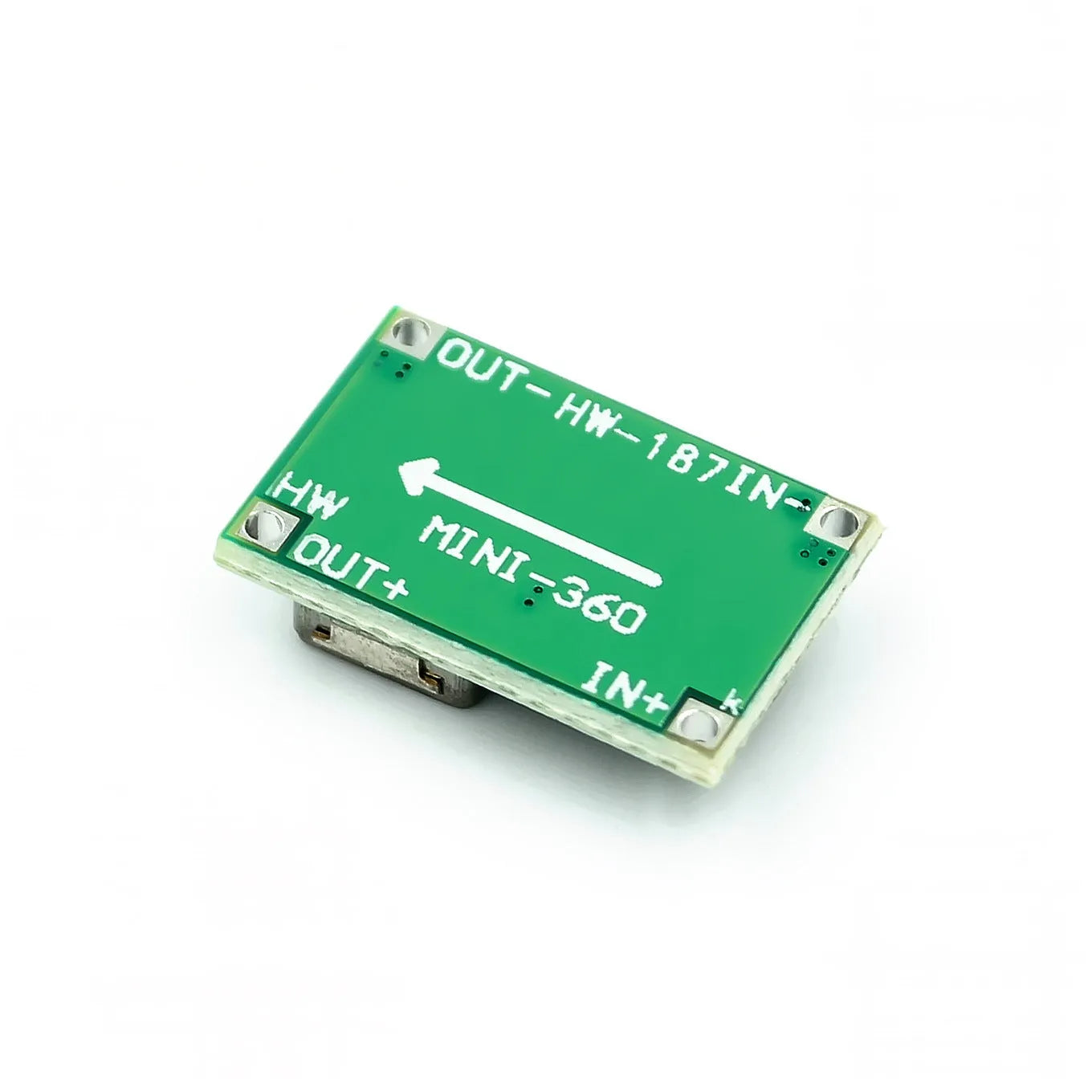

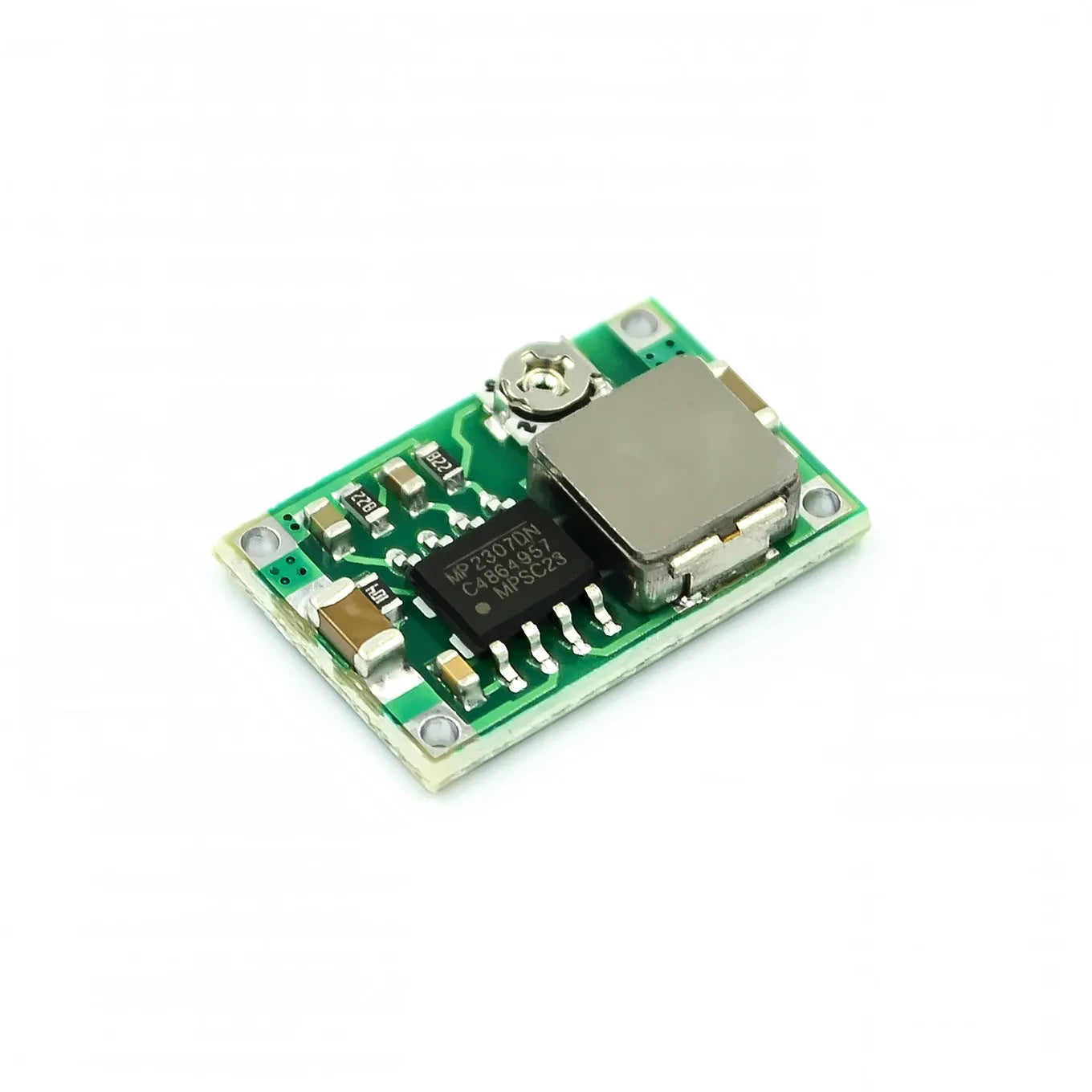

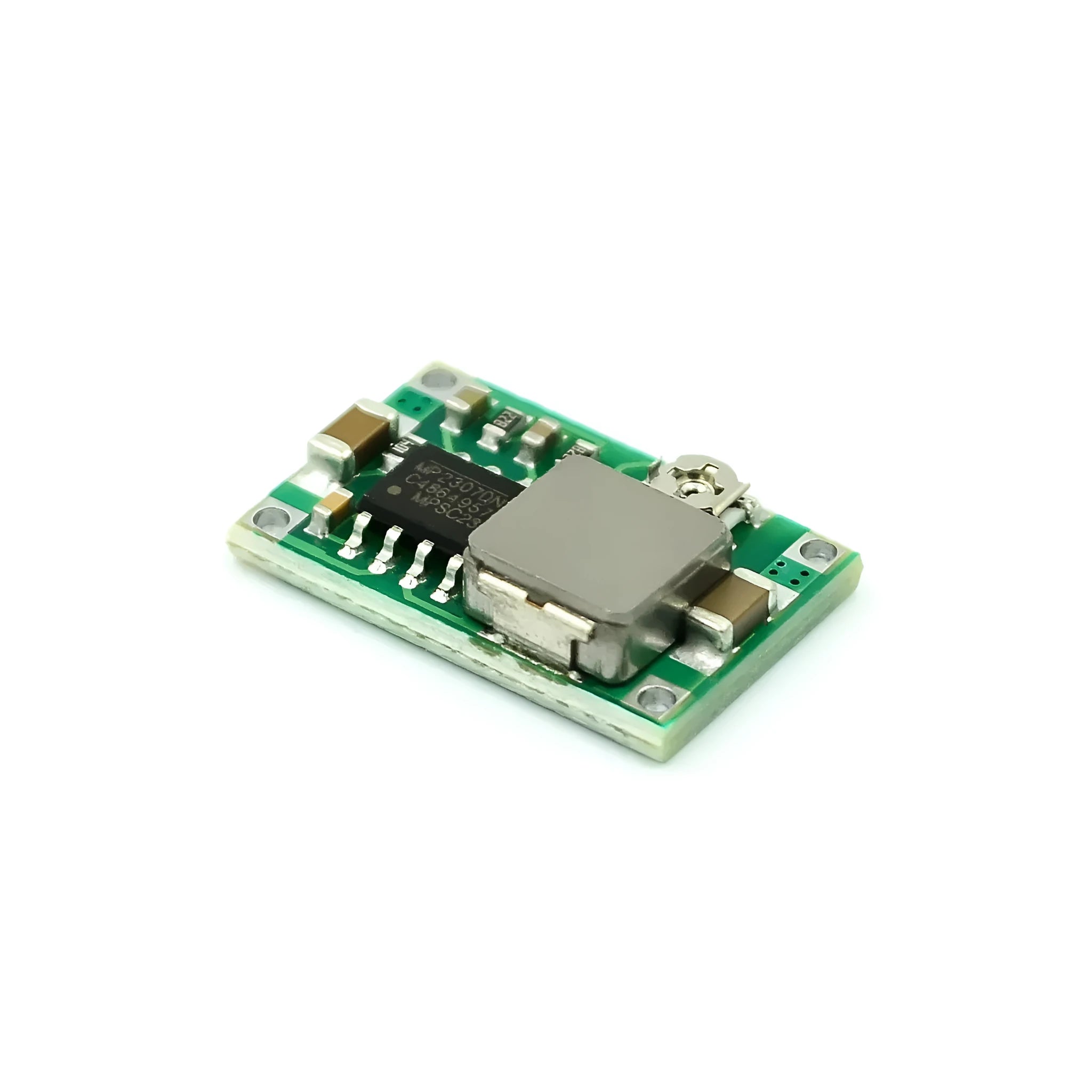

The module is built on a standard green printed circuit board (PCB), which hosts all its electronic components. A core feature of its construction is the use of an integrally moulded power inductor. This component is crucial for the buck conversion process, storing and releasing energy efficiently while contributing significantly to the module's small overall size by eliminating the need for a larger, discrete inductor. The buck conversion process is managed by a synchronous rectifier control chip, a design choice that enhances efficiency by reducing the voltage drop and power loss typically associated with diode-based rectification in simpler buck converters. This chip-based synchronous approach is a key factor in achieving the module's stated maximum conversion efficiency of 96%.

Size and Practical Fit

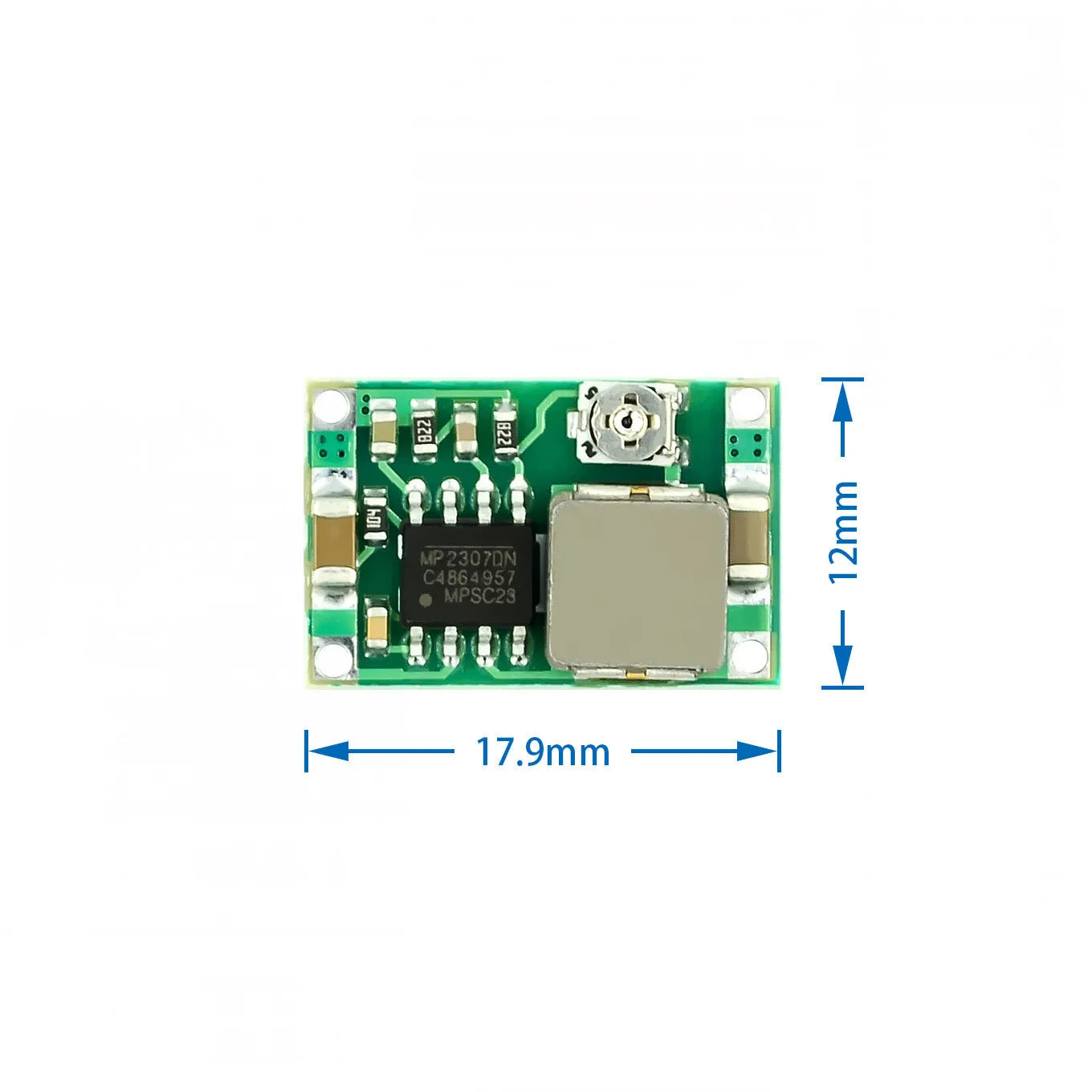

The most immediately notable specification is the module's ultra-small size. Measuring 17mm long, 11mm wide, and 3.8mm high, its volume is minimal. This compact form factor is the defining differentiator for this product, allowing it to be installed in locations impossible for bulkier modules. Engineers and hobbyists can solder it directly onto a main project PCB as a surface-mount style component or use header pins to mount it perpendicularly, saving valuable board real estate. The small size does not come at the expense of a broad operating temperature range; the module is specified to function reliably from -40°C to +85°C, indicating its suitability for applications in challenging environmental conditions, both indoors and outdoors.

Uses and Placement

Given its electrical specifications and physical form, the Mini-360 buck converter finds utility in a diverse array of scenarios, from professional prototyping to finished consumer products.

Event or Professional Use

In professional electronics design, laboratory settings, and industrial prototyping, this module serves as a convenient, off-the-shelf solution for quickly creating stable voltage rails. Its adjustable output (1.0V-17V) allows engineers to test circuits at various voltage levels without needing to source multiple fixed regulators. The 4.75V-23V input range covers common power sources like 5V USB, 12V adapters, or multi-cell lithium battery packs. With a maximum continuous output current of 1.8A, it can power a significant portion of prototype circuitry, including development boards, motor drivers, and display modules. Its high 340KHz switching frequency helps keep electromagnetic interference (EMI) manageable and allows for the use of smaller external filtering components in the final design.

Everyday Home Use

For hobbyists, makers, and in DIY smart home projects, the Mini-360 is an accessible tool for power management. It can be used to efficiently power 3.3V or 5V Arduino, ESP8266, or Raspberry Pi Pico projects from a 12V wall adapter or battery, reducing wasted energy as heat. It is ideal for modifying existing devices, such as creating a custom voltage supply for LED strips, cooling fans, or audio amplifiers from a single main power source. Its small size makes it perfect for embedding inside refurbished electronics, model railways, or custom lamps where internal space is limited. The module's ability to provide a clean, regulated output (with a no-load ripple of 30mV and ±0.5% load regulation) helps ensure stable operation for sensitive digital components in home automation systems.

Benefits and Buying Value

The value proposition of the Mini-360 buck converter lies in its effective balancing of size, efficiency, and capability, offering a reliable component for one-off projects or integration into larger production runs.

Reuse and Low Maintenance

As a solid-state electronic module with no moving parts, it requires virtually no maintenance. Its durability is linked to its specified operating temperature range and robust PCB construction. The module can be desoldered and reused across multiple projects, providing long-term value. The synchronous rectification design not only boosts efficiency but also typically runs cooler than asynchronous designs under similar loads, which can contribute to long-term reliability. By providing efficient conversion, it also reduces thermal stress on itself and the surrounding components within an enclosure, promoting overall system longevity. Users should adhere to the current limits (1.8A continuous) and ensure adequate airflow in confined spaces to maintain performance over time.

Why Choose This Product

The decision to select the Mini-360 hinges on its specific combination of ultra-compact dimensions and competent electrical performance. When compared generically to larger DC-DC buck modules, its primary advantage is its ability to fit where others cannot, without sacrificing key features like a wide adjustable output range and high efficiency. For applications where every cubic millimetre counts, such as in wearable electronics, drone avionics, or miniaturised sensors, this module provides a pre-engineered solution that would be difficult and time-consuming to replicate with discrete components. The inclusion of synchronous rectification and a moulded inductor in such a small package represents a focused design that delivers a practical, ready-to-use power conversion stage, saving development time and simplifying the parts inventory for builders at all levels.
