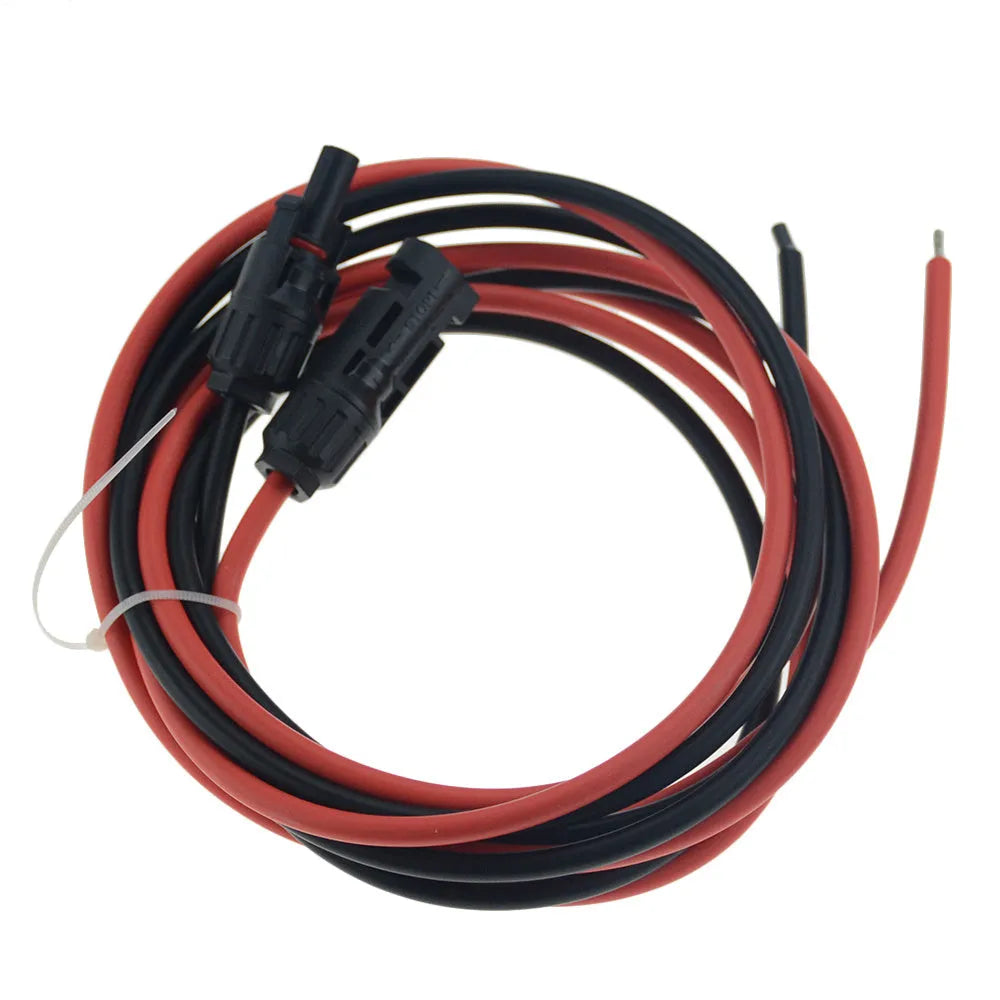

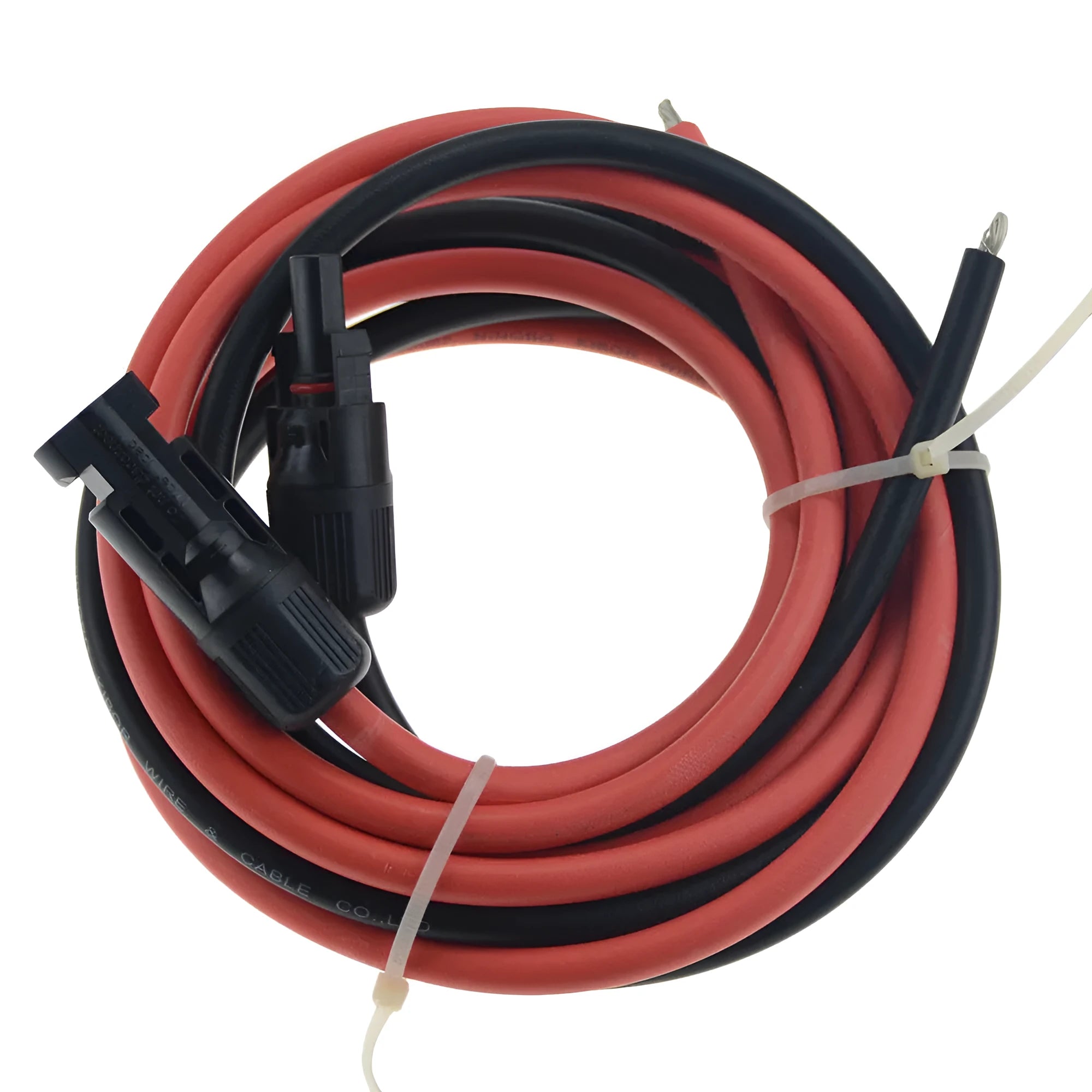

MC4 Solar Extension Cable with Low-Smoke Halogen-Free Insulation for Panel Arrays

This single-core solar panel cable provides a secure and practical method for extending the reach of your photovoltaic (PV) system. Designed specifically for new energy applications, it comes with pre-installed MC4 connectors, the industry-standard fitting used on most solar panels and charge controllers. This eliminates the need for separate connector purchases or specialist crimping tools, simplifying the installation process for DIY enthusiasts and professionals alike. The cable is built to handle medium and low voltage applications up to 35 kV, making it suitable for the DC side of standard residential and commercial solar installations.

Features and Construction

This solar cable is engineered with specific materials and a straightforward design to fulfil its role in a photovoltaic system reliably. Its construction prioritises electrical safety and durable performance in an outdoor environment.

Material and Build

The core conductor is made from tinned copper wire. The tinning process involves coating the copper strands with a thin layer of solder, which helps protect the metal from oxidation and corrosion over time, maintaining good electrical conductivity. The cable is insulated with a low-smoke halogen-free (LSHF) material. In the event of a fire, this type of insulation is designed to produce minimal smoke and no halogen-based toxic gases, contributing to a safer installation environment compared to standard PVC cables.

Size and Practical Fit

The cable has a nominal cross-sectional area ranging from 2.5 mm² to 6 mm², with a maximum outer diameter between 2.5 mm and 6 mm. This range indicates it is available in different gauges to suit various current requirements within a solar array. It is offered in five convenient pre-cut lengths: 1 metre, 2 metres, 3 metres, 5 metres, and 10 metres. This selection allows you to choose the exact length needed to bridge the gap between your solar panels or to route cables neatly to your combiner box or inverter, avoiding excess cable that requires coiling and management.

Uses and Placement

This cable serves a dedicated function within a solar power system, acting as an extension lead between key components. Its design supports both straightforward home installations and more complex professional arrays.

Event or Professional Use

For professional solar installers or for setting up temporary solar arrays for events, the pre-fitted MC4 connectors significantly reduce on-site assembly time. The availability of specific lengths (1M, 2M, 3M, 5M, 10M) allows for precise cable runs, creating a tidy and efficient installation without waste. The colour coding with red and black options is essential in larger arrays for quickly identifying and tracing positive and negative strings back to the combiner box, aiding in both installation and future troubleshooting.

Everyday Home Use

For the DIY homeowner installing a rooftop or garden solar system, this cable simplifies the process. There is no need to purchase MC4 connectors separately or learn how to crimp them correctly. You can use the red cable for all positive connections and the black for all negative connections, following standard electrical colour conventions. The range of lengths means you can often find a ready-made cable that fits your specific panel spacing, whether connecting panels in series on a single frame or running a cable from a ground-mounted panel up to a house entry point.

Benefits and Buying Value

The value of this solar extension cable lies in its convenience, safety-oriented design, and the flexibility it offers during system design and installation.

Reuse and Low Maintenance

The robust MC4 connectors are designed for multiple mating cycles, meaning you can disconnect and reconnect panels if you need to rearrange your array or perform maintenance. The tinned copper core and LSHF insulation are selected for long-term stability and safety, requiring no specific maintenance once installed correctly. The cable is a durable component intended to last the lifespan of a typical solar installation.

Why Choose This Product

Choosing this pre-assembled MC4 extension cable removes a potential point of failure from your solar system—improperly crimped connectors. It provides a guaranteed weatherproof connection at both ends. The low-smoke halogen-free insulation is a prudent choice for any installation, particularly where cables run through lofts or enclosed spaces, adding a layer of safety that standard cables may not offer. The option to select your exact required length from the available range helps minimise cable clutter and potential voltage drop from excessively long runs.
