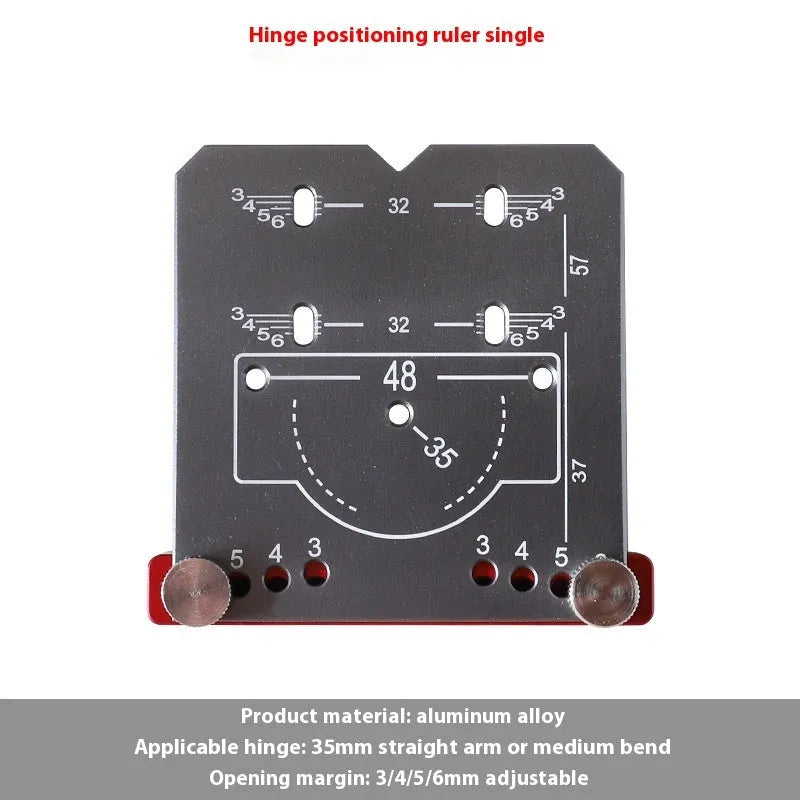

35mm Hinge Punch Locator with Adjustable 3/4/5/6mm Margin Marks for Cabinet and Wardrobe Installation

Installing cabinet doors and wardrobe hinges requires precise alignment to ensure smooth operation and a professional finish. This hinge punch locator provides a straightforward solution for woodworking DIY enthusiasts and home improvement projects. Designed specifically for 35mm extended arm and middle bend hinges commonly used in home cabinetry, this tool eliminates guesswork and measurement errors. The aluminium alloy construction offers a durable yet lightweight base, while the adjustable margin marks accommodate different installation requirements. Whether you're fitting new kitchen cabinets, bedroom wardrobes, or other storage units, this locating ruler helps achieve consistent hinge placement with minimal effort and maximum accuracy.

Features and Construction

The hinge positioning ruler combines practical design with quality materials to deliver reliable performance for various installation scenarios. Its construction focuses on durability and precision, with components chosen specifically for their functional properties in woodworking applications.

Material and Build

The main body of this hinge locating rule is manufactured from high-quality aluminium alloy, providing a balance between strength and lightness. This material choice ensures the tool remains rigid during use while being easy to handle and position accurately. The hard alloy limit tapper blade represents a key component, with its cutting edge undergoing high-temperature heat treatment to achieve high hardness levels. This treatment process enhances the blade's sharpness and wear resistance, allowing it to maintain its effectiveness through multiple uses when marking hinge positions on various wood surfaces.

Size and Practical Fit

This tool is specifically designed to accommodate 35mm hinges, which represent a standard size for many cabinet door and wardrobe installations in residential settings. The adjustable margin feature provides four distinct settings at 3mm, 4mm, 5mm, and 6mm intervals, offering flexibility for different hinge types and installation preferences. This range covers common requirements for both extended arm and middle bend hinge configurations, making the tool versatile across various projects. The design focuses on practical application, with clear markings and guide holes that simplify the positioning process for users of different skill levels.

Uses and Placement

This hinge punch locator serves multiple applications in home improvement and furniture installation contexts. Its primary function revolves around ensuring accurate hinge placement, which directly impacts the functionality and appearance of finished cabinetry.

Event or Professional Use

For professional cabinet installers or experienced DIY enthusiasts working on multiple projects, this tool offers time-saving benefits through standardized measurements. The adjustable margin settings allow for consistency across installations, particularly useful when fitting multiple doors within the same cabinet unit or wardrobe. The hard alloy tapper blade provides a reliable marking method that creates clear indicators for subsequent drilling operations, reducing the likelihood of errors that could compromise the finished result. This precision tool helps maintain quality standards in both professional and serious amateur woodworking contexts.

Everyday Home Use

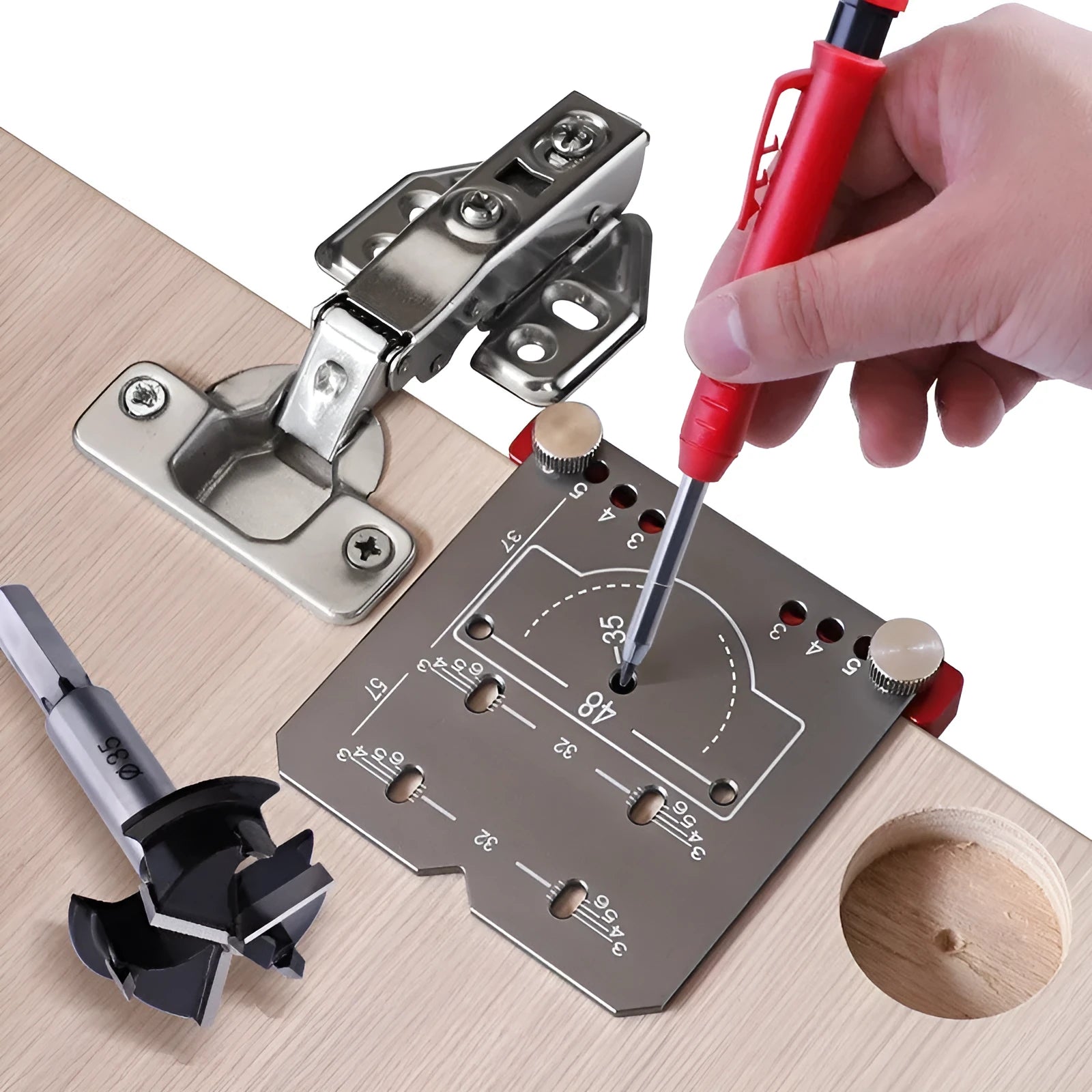

Homeowners undertaking cabinet installation or renovation projects will find this hinge locating ruler simplifies what can be a challenging aspect of furniture assembly. The tool transforms complex measurement tasks into straightforward positioning operations, making hinge installation more accessible to those with limited woodworking experience. Suitable for kitchen cabinets, bedroom wardrobes, bathroom vanities, and other storage units, it addresses a common need in household DIY. The simple operation – aligning, selecting the margin, and marking – provides a methodical approach that reduces frustration and increases the likelihood of successful hinge installation on first attempt.

Benefits and Buying Value

Choosing this hinge positioning tool brings several practical advantages that extend beyond the initial installation process. These benefits relate to both immediate project outcomes and longer-term tool utility.

Reuse and Low Maintenance

The durable construction of this hinge punch locator supports repeated use across multiple projects over time. The aluminium alloy body resists deformation under normal use conditions, while the hard alloy tapper blade maintains its sharpness through the heat treatment process. This combination means the tool requires minimal maintenance beyond basic cleaning and proper storage between uses. Unlike disposable marking methods, this reusable tool represents a sustainable approach to woodworking measurements, reducing waste while providing consistent results project after project.

Why Choose This Product

This hinge locating rule addresses specific challenges in cabinet and wardrobe installation through its focused design and adjustable features. The combination of 35mm hinge compatibility with four margin settings provides versatility that accommodates various installation requirements without needing multiple specialized tools. The inclusion of a hard alloy tapper blade with heat-treated cutting edge offers a practical marking solution that creates clear, precise indicators for drilling. For anyone fitting hinges on cabinet doors, wardrobes, or similar furniture, this tool provides a systematic approach that improves accuracy while reducing the time and effort required for proper hinge alignment and installation.
