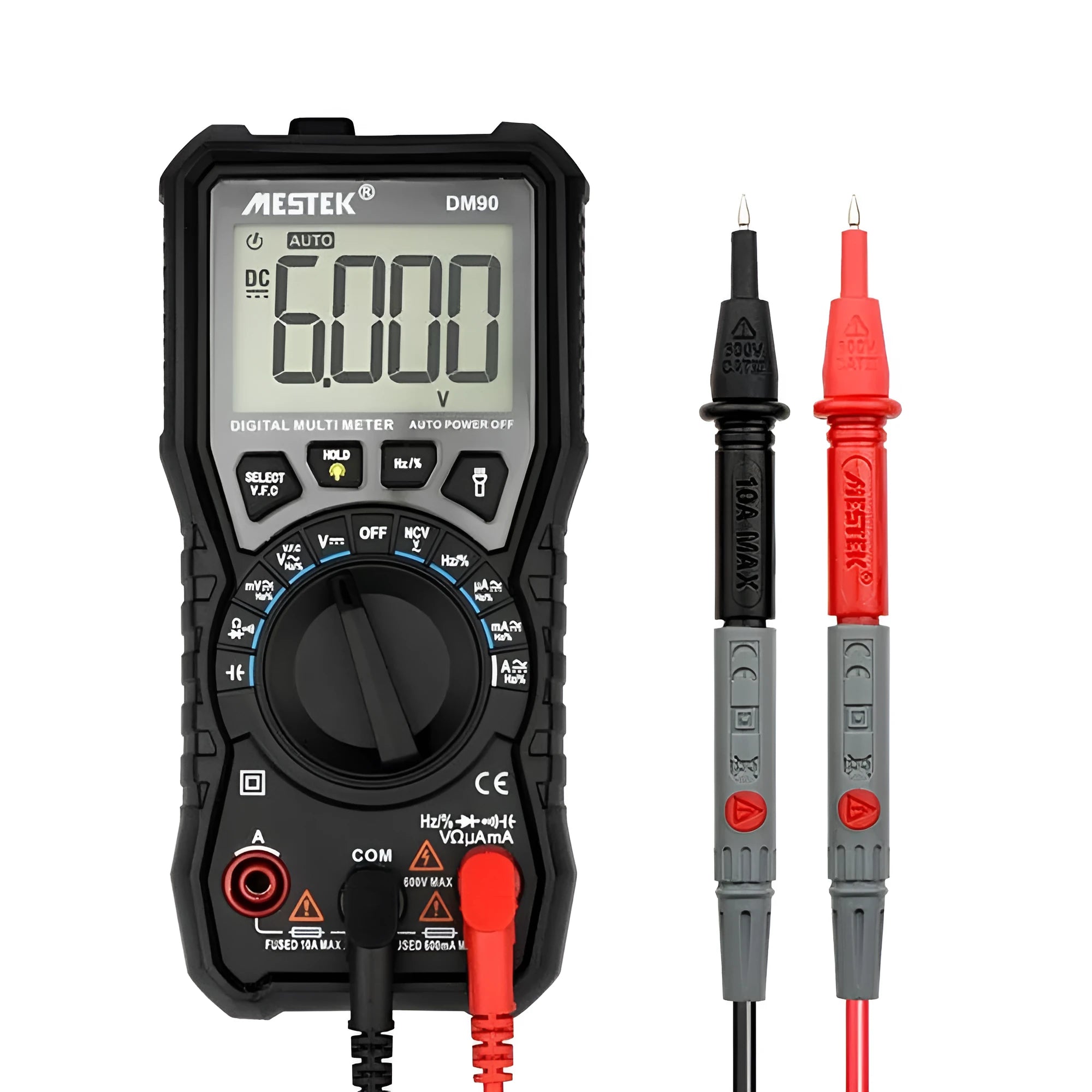

DM90A High Precision Digital Multimeter: Auto-Ranging Meter with 6000 Count Display and Temperature Measurement

Engineers, electricians, and serious hobbyists require a reliable digital multimeter that balances sophisticated functionality with straightforward operation. The DM90A model addresses this need by integrating automatic range selection across its core measurement functions, eliminating manual scale adjustments and reducing user error. Its high-resolution 6000 count display ensures readings are presented with clarity, supporting detailed analysis of voltage, current, resistance, capacitance, and frequency. This instrument extends beyond standard electrical testing with dedicated modes for temperature measurement using a thermocouple, diode verification, and audible continuity checks. Designed for practical fieldwork and bench use, it incorporates essential safeguards like overload protection and an energy-saving auto power-off function, all while being powered by commonly available AAA batteries.

Features and Construction

The DM90A digital multimeter is built around a core set of measurement capabilities and user-convenience features designed for accuracy and ease of use in varied electrical testing scenarios.

Material and Build

While specific housing materials are not detailed in the source, the multimeter's construction supports operation in defined environmental conditions. It is rated for use at altitudes up to 2000 metres and within a working temperature range of 0°C to 40°C (32°F to 104°F) at 45% to 80% relative humidity. These specifications suggest a build suitable for workshop and site use. The device is powered by three standard 1.5V AAA batteries, which are not included, offering flexibility in power source replacement. Its storage parameters of -20°C to 60°C (-4°F to 140°F) indicate resilience for transport and non-operational periods.

Size and Practical Fit

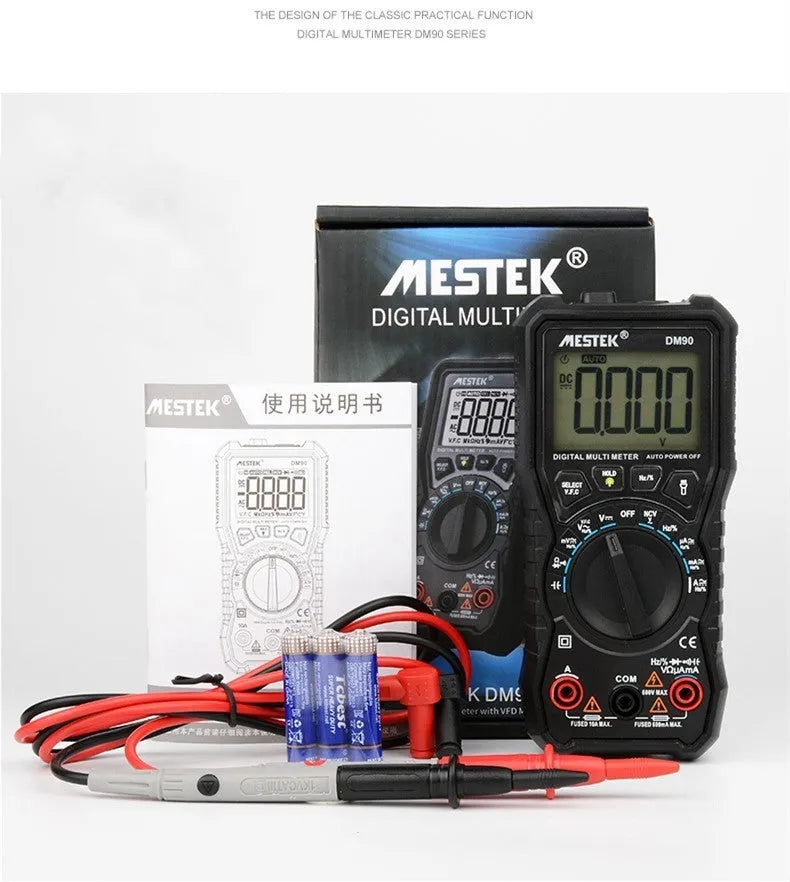

The physical dimensions of the DM90A multimeter are not provided in the source text. Its practical fit is defined by its functional attributes rather than its size. The automatic range control is a key ergonomic feature, allowing users to take measurements without manually cycling through scales, which speeds up workflow. The 0.4-second sampling rate provides responsive feedback. The inclusion of a 10A test lead in the package contents facilitates high-current measurements directly, and the overall package is designed to be portable, as implied by its battery operation and specified altitude rating for field use.

Uses and Placement

This multimeter is engineered for a spectrum of electrical diagnostics and measurement tasks, from professional installations to advanced DIY projects and educational settings.

Event or Professional Use

For professional electricians and electronic engineers, the DM90A delivers the necessary precision and range for troubleshooting circuits, verifying installations, and component testing. Its true RMS capability for AC voltage and current up to 600V and 10A, combined with detailed capacitance (up to 99.99mF) and high-frequency measurement (up to 99.99MHz), supports complex diagnostic work. The overload protection of 250V true effective value offers a safety margin during accidental over-voltage incidents. The dedicated temperature measurement function from -20°C to 1000°C is particularly useful for monitoring components, motors, or environmental conditions during system operation.

Everyday Home Use

For the advanced DIY enthusiast or student, the multimeter's auto-ranging function makes it accessible for home electronics repair, automotive electrical checks, and hobbyist projects like robotics or Arduino builds. The continuity buzzer provides an immediate audible confirmation for wire and fuse testing, while the diode test function aids in checking LEDs and other semiconductor components. The clear 6000 count display helps interpret battery voltages, household AC outlet tests (with appropriate caution), and resistor values with high resolution. Its operation from common AAA batteries makes it convenient for occasional use without needing specialised power supplies.

Benefits and Buying Value

The DM90A multimeter offers tangible value through its combination of automated features, extended measurement ranges, and built-in protective functions, aiming to be a versatile and durable tool for its intended users.

Reuse and Low Maintenance

The product is designed for repeated use across many projects. The automatic power-off feature, activating after approximately 15 minutes of inactivity, proactively conserves battery life, reducing ongoing power costs and the frequency of battery replacements. The robust environmental specifications for storage and operation suggest it can withstand the rigours of a tool kit. Using the device within its stated voltage, current, and temperature limits, as guided by the included manual, supports its long-term functional integrity without requiring complex maintenance procedures.

Why Choose This Product

The decision to choose the DM90A centres on its specific blend of high-resolution display, broad auto-ranging measurement capabilities, and specialised functions not always found in base models. The 6000 count display provides finer granularity than common 4000 count meters, which is beneficial for precise diagnostics. The inclusion of temperature measurement up to 1000°C, high-frequency analysis, and large capacitance range adds significant utility for a wide array of technical tasks. When compared generically to multimeters lacking true RMS, lower display counts, or without temperature measurement, these concrete differentiators present a clear, specification-supported advantage for users whose work demands these functions.
