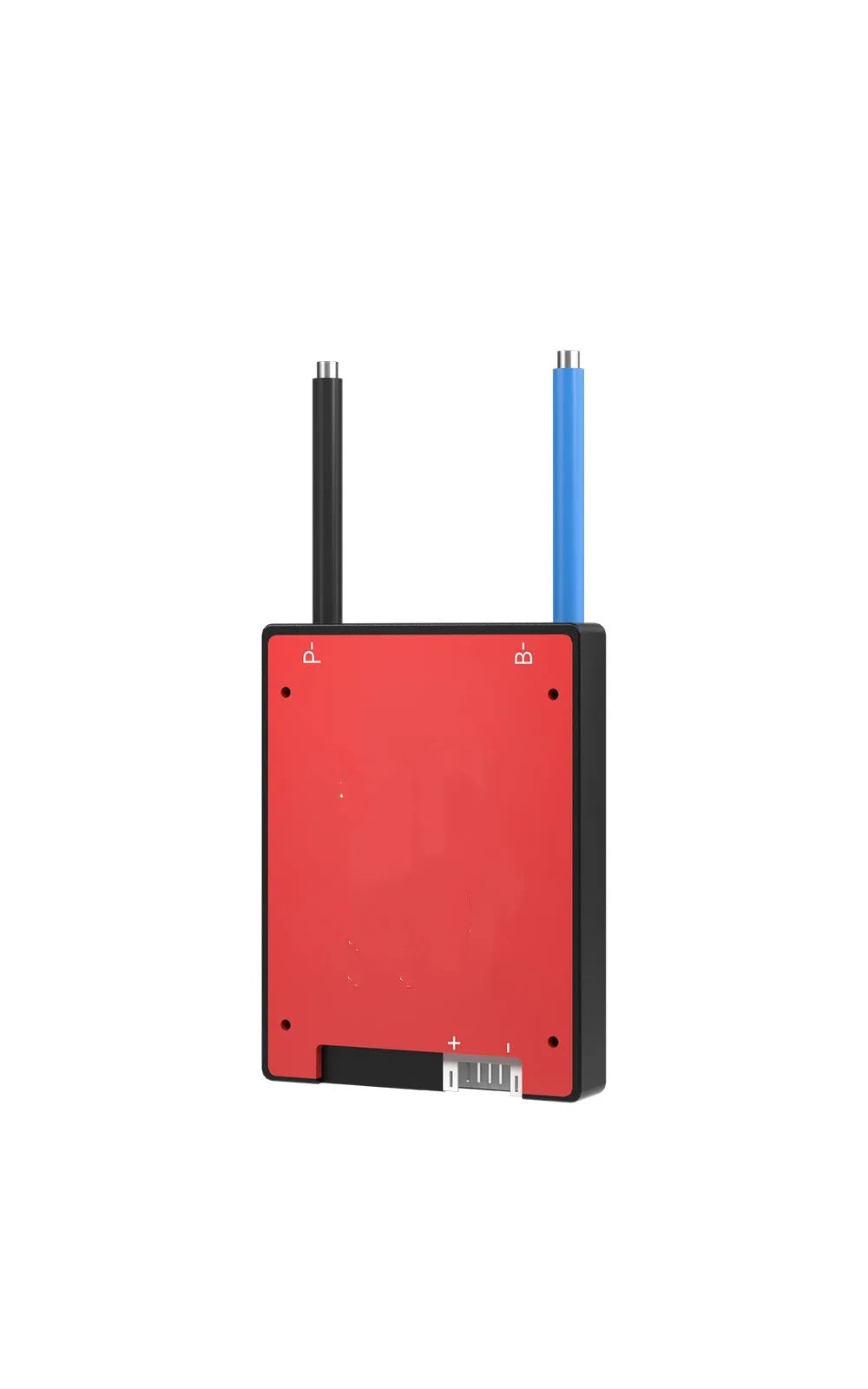

Dali 12V Lithium Iron Phosphate Battery Protection Board with Balancing and Fan Options

Managing the safe operation and longevity of a lithium iron phosphate (LiFePO4) battery pack requires a dedicated battery management system. This Dali protection board is engineered specifically for 4-cell series configurations, delivering a stable 12V output while monitoring and protecting the pack. It is a central component for DIY power banks, solar energy storage, marine applications, and backup power systems, where reliable battery oversight is non-negotiable. The product range addresses varied needs by offering a spectrum of continuous discharge currents and the option for enhanced thermal management.

Features and Construction

The board's core function is to safeguard your battery investment. It is built around a specific set of protection features tailored for LiFePO4 chemistry, with construction varying between standard and enhanced models.

Material and Build

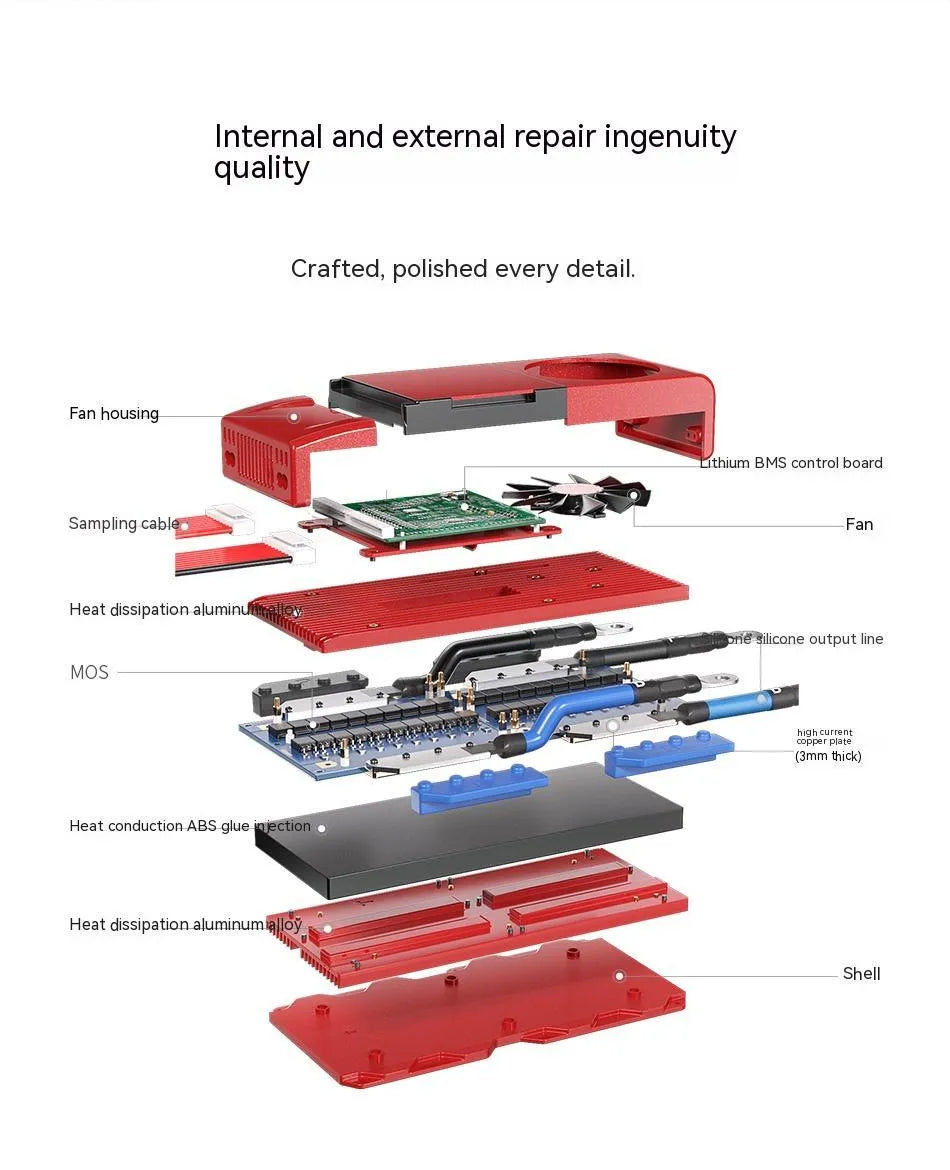

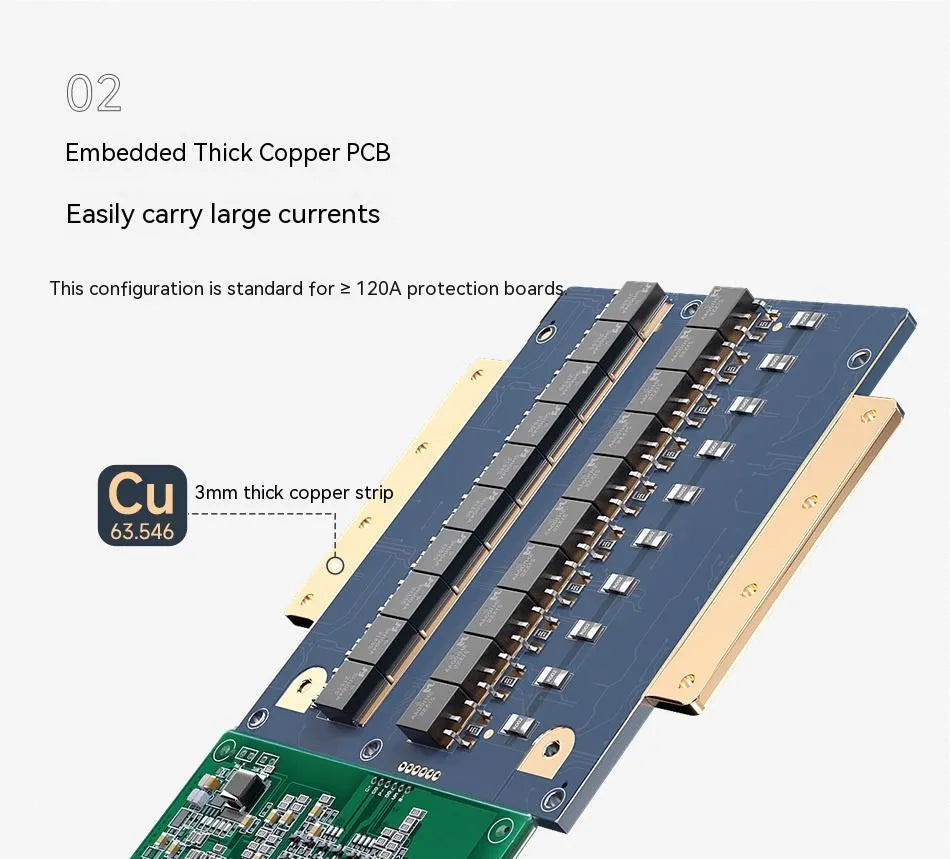

The foundation is a robust PCB housing the control integrated circuits, power MOSFETs, and current sensing components. For models rated at 80A and higher, an integrated cooling fan is a key differentiator, actively moving air across a heatsink to manage the increased thermal load during high-current operation. This active cooling aims to maintain component temperatures within a safe operating range, which is a practical consideration for sustained high-power use.

Size and Practical Fit

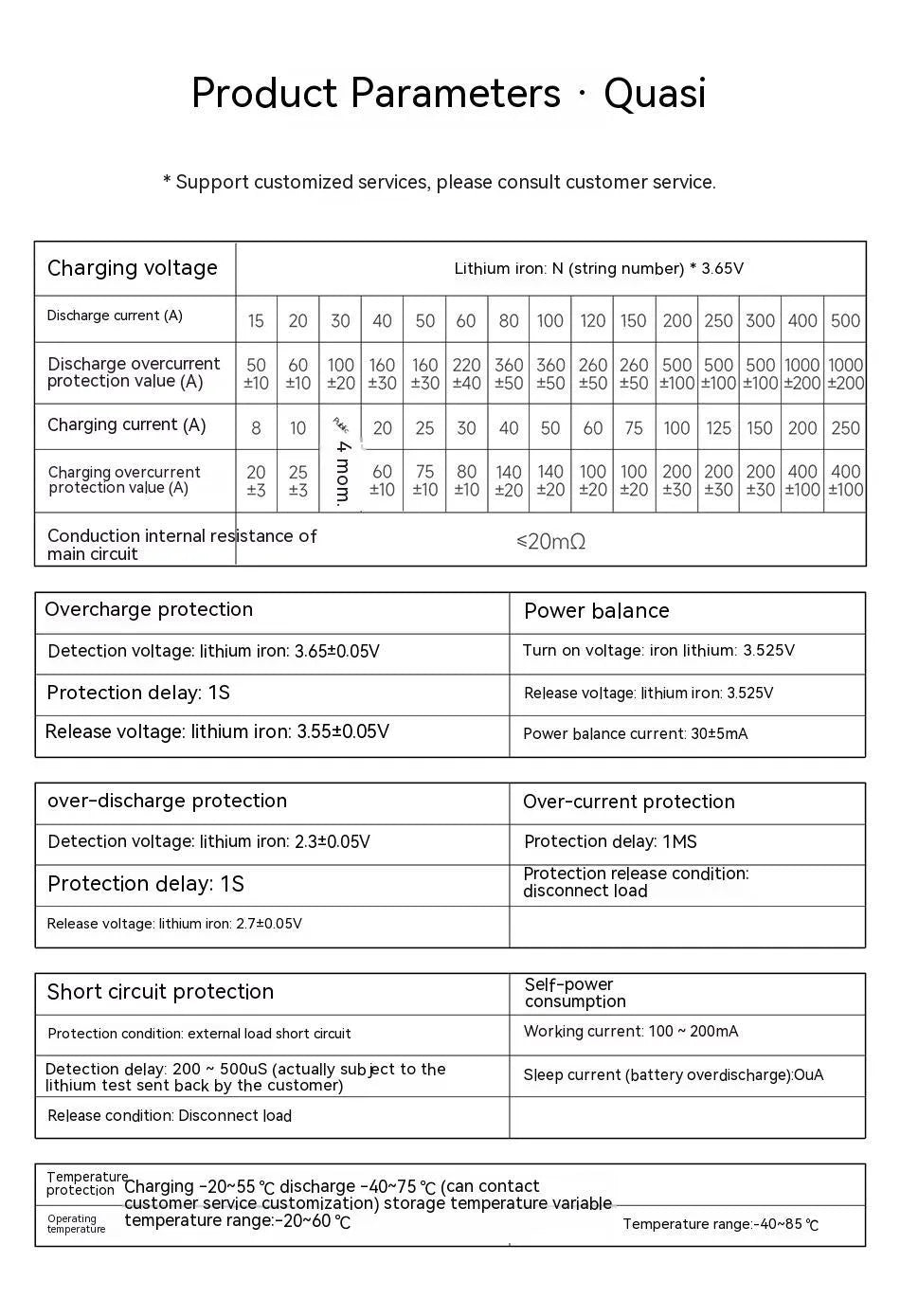

While exact physical dimensions are not provided, the product's functional 'size' is defined by its electrical ratings. The critical specification is its continuous discharge current, which ranges from 15A for lighter duties up to 500A for demanding high-power applications. Selecting the correct amperage model is essential; it must comfortably exceed the maximum current your system will draw to ensure safety and board longevity. The same-port design simplifies the physical layout, requiring fewer connection points between the battery, charger, and load.

Uses and Placement

This protection board is versatile, fitting into any project requiring a managed 12V LiFePO4 power source. Its application dictates the required current rating and the potential need for active cooling.

Event or Professional Use

For professional or high-demand scenarios like powering electric vehicle components, large off-grid inverters, or industrial equipment, the high-current variants (200A to 500A) with cooling fans are relevant. These models are constructed to handle substantial power throughput continuously, with the fan directly addressing the heat generated. The integrated cell balancing function in these models is crucial for maintaining pack health under frequent, deep cycling, which is common in daily professional use.

Everyday Home Use

In residential settings for solar storage, caravan or campervan power, or home backup systems, the mid-range models (30A to 150A) often provide adequate capacity. The balancing function helps maintain cell equilibrium during the charge-discharge cycles of daily solar harvesting or occasional grid outages. Even for home use, selecting a model with a current rating that provides a healthy margin over your typical load ensures reliability and protects your battery investment over time.

Benefits and Buying Value

The value of a dedicated protection board lies in risk mitigation and battery lifespan extension. It acts as an essential safeguard, preventing costly battery damage from common fault conditions.

Reuse and Low Maintenance

By preventing over-charge and over-discharge—the primary causes of lithium battery degradation—this board directly contributes to the pack's usable lifespan. The cell balancing feature, available on all models, works passively or actively to correct voltage drift between cells, promoting uniform ageing and maximising the overall pack capacity over hundreds of cycles. This reduces the long-term cost of ownership by delaying the need for battery replacement.

Why Choose This Product

This Dali board offers a clear, specification-driven selection process. The wide range of current ratings allows you to match the product precisely to your system's demands without overpaying for excessive capacity or risking an under-specified unit. The optional fan on higher-power models provides a tangible solution to a known engineering challenge (heat), and the same-port design offers installation simplicity. The focus is on providing a defined set of protective functions for a specific battery chemistry (4S LiFePO4), making it a targeted and practical component for your energy storage project.
