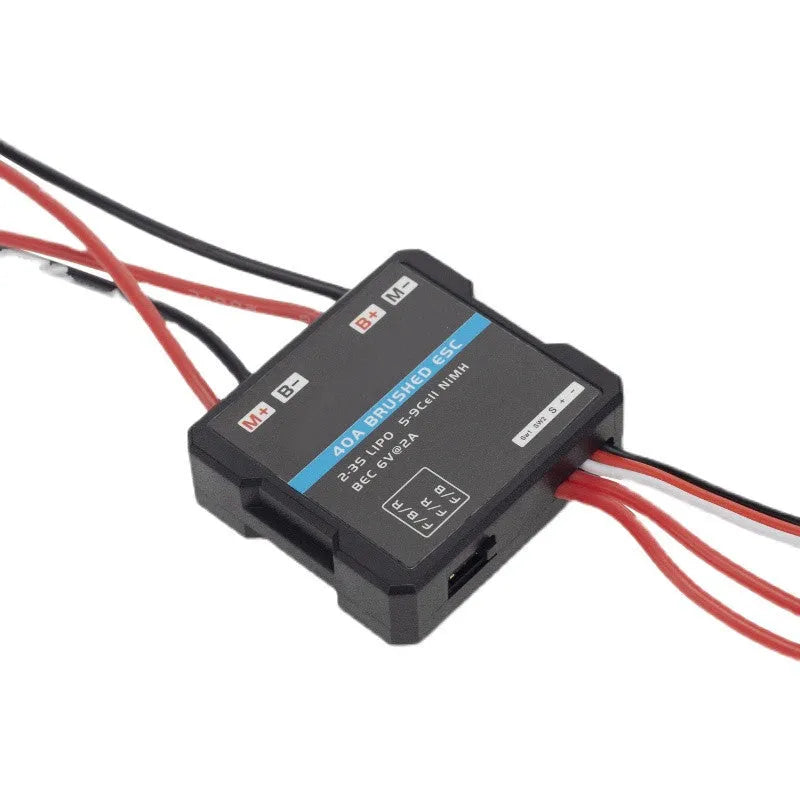

40A brushed electronic speed controller with climbing mode for 1/16 and 1/18 scale RC vehicles

This brushed electronic speed controller delivers 40A of continuous forward current with a peak of 160A, specifically engineered for smaller scale radio-controlled models including 1/16 and 1/18 scale trucks, scooters, Bigfoot vehicles, and climbing vehicles. Its reverse mode provides 20A continuous current with 80A peak, creating balanced forward and reverse performance for realistic vehicle operation. The controller supports three distinct operation modes—one-way, two-way, and a specialised climbing mode—giving enthusiasts flexibility for different driving scenarios and vehicle types. With compatibility for 2S lithium polymer or 5-6 cell nickel-metal hydride battery packs, it powers 280, 370, or 380 size motors running below 30,000 RPM at 7.2V, making it suitable for various small-scale RC applications.

Technical Specifications and Compatibility

The speed controller's technical parameters define its suitable applications and performance boundaries within the RC hobbyist market.

Current and Power Ratings

Forward operation delivers 40A continuous current with a 160A peak, while reverse operation provides 20A continuous with 80A peak. These ratings determine the controller's capacity to handle electrical loads from different motor sizes and driving conditions. The BEC (Battery Eliminator Circuit) outputs 3.1/6V in switched voltage regulator mode, supplying stable power to your receiver and servos without requiring a separate battery. This integrated power management simplifies wiring in compact RC models where space is limited.

Battery and Motor Compatibility

The controller operates with 2S lithium polymer (LiPo) battery packs or 5-6 cell nickel-metal hydride (NiMH) packs, covering common power sources for small-scale RC vehicles. It supports 280, 370, or 380 size motors with rotational speeds below 30,000 RPM when powered at 7.2V. This compatibility range ensures the controller works with standard motor configurations found in 1/16 and 1/18 scale models, providing enthusiasts with reliable performance across different vehicle builds and driving styles.

Operation Modes and Vehicle Applications

Three distinct operation modes adapt the controller's behaviour to different driving requirements and vehicle types.

Mode Selection Options

The one-way mode provides standard forward-only operation, suitable for basic vehicles or applications where reverse functionality isn't required. Two-way mode enables both forward and reverse operation with independent current capabilities—40A continuous forward and 20A continuous reverse. The dedicated climbing mode offers specialised control parameters optimised for slow-speed, high-torque applications typical in rock crawlers and other climbing vehicles, where precise throttle modulation at low speeds is essential for navigating obstacles.

Supported Vehicle Types

This controller is designed specifically for 1/16 and 1/18 scale electric models including scooters, trucks, Bigfoot vehicles, and climbing vehicles. The scaled-down dimensions and current ratings make it appropriate for these smaller RC platforms where full-size controllers would be physically and electrically excessive. By matching the controller to these specific vehicle classes, users can achieve balanced performance without overpowering their models or compromising control precision in specialised applications like rock crawling.

Practical Benefits and Installation

The controller's design addresses practical considerations for installation, operation, and maintenance in small-scale RC applications.

Installation and Setup

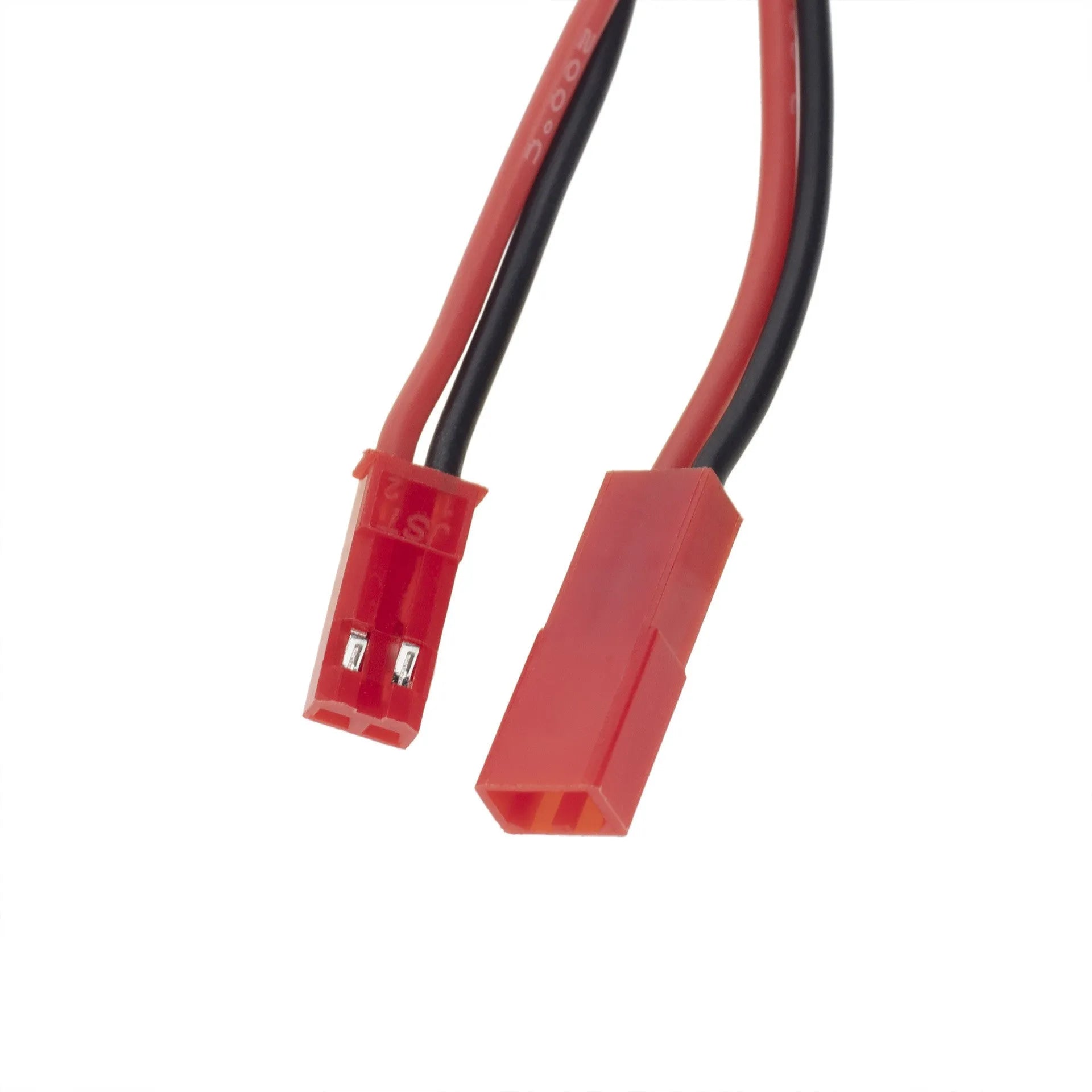

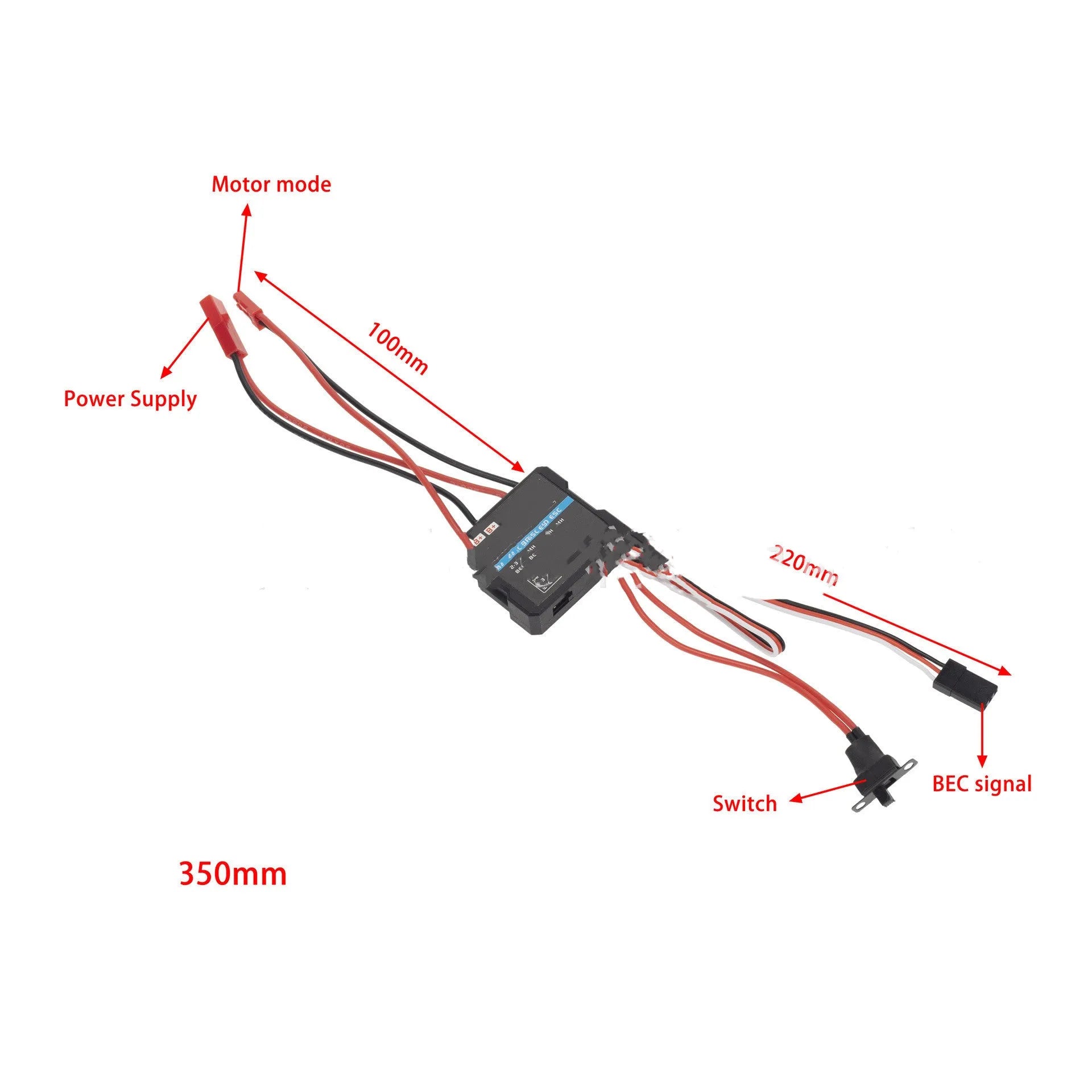

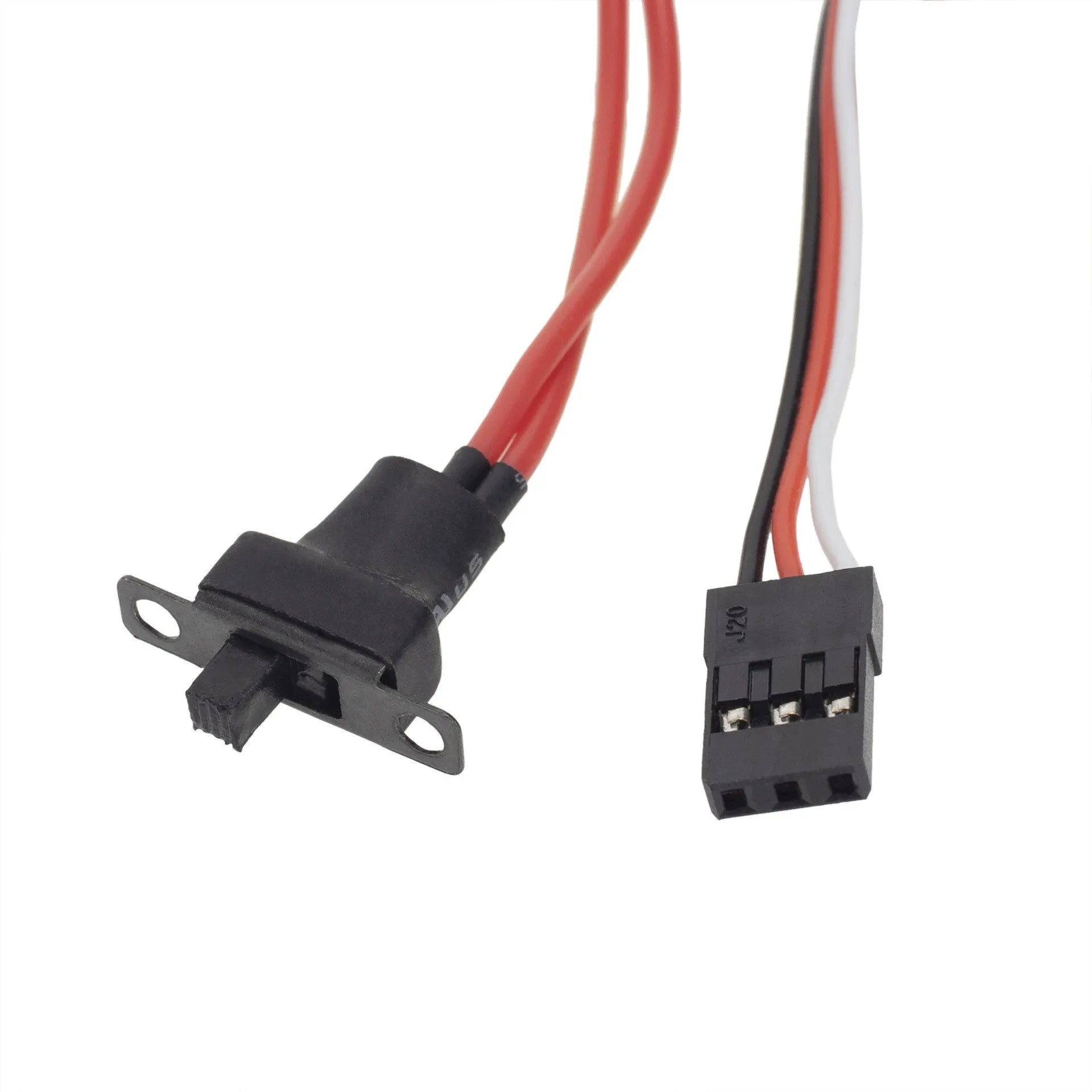

With its compact form factor designed for 1/16 and 1/18 scale vehicles, the controller fits into limited chassis spaces common in these smaller models. The single brush electric modulation unit includes necessary connections for battery, motor, and receiver, following standard RC wiring conventions. Users should ensure adequate ventilation around the controller during operation, as the 40A continuous current rating indicates potential heat generation during sustained high-load use, particularly in demanding applications like climbing or high-speed running.

Performance Advantages

The dedicated climbing mode provides optimised throttle response for slow-speed, high-torque applications where precise control matters more than maximum speed. The 40A continuous forward current rating ensures reliable power delivery during sustained operation without thermal cutoff issues that can plague underrated controllers. By matching current capabilities to motor requirements—supporting motors below 30,000 RPM at 7.2V—the controller avoids the performance limitations of generic controllers not specifically designed for small-scale RC applications.
