BMW OBD2 Diagnostic Adapter Cable for 20-Pin to 16-Pin Port Conversion

This specialised BMW OBD2 diagnostic adapter cable provides a direct hardware solution for accessing the onboard diagnostic systems of applicable BMW vehicles. It bridges the gap between modern, standardised OBD2 diagnostic tools, which use a universal 16-pin connector, and the older, manufacturer-specific 20-pin diagnostic ports found on many BMW models. By performing a straightforward electrical interface conversion, this cable enables mechanics, technicians, and home workshop enthusiasts to read fault codes, monitor live data, and perform basic diagnostics without needing the proprietary dealership interface tool. Its specified 12V operating voltage aligns with standard vehicle electrical systems, ensuring compatibility and safe use.

Features and Construction

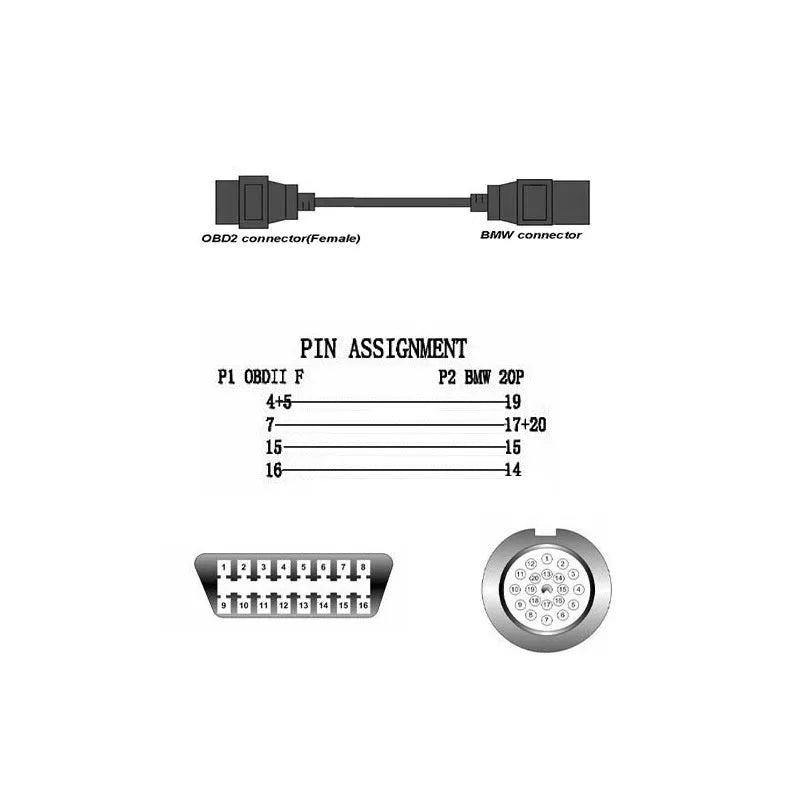

The cable is designed as a passive adapter, meaning it does not contain active electronic components but provides the correct pin-to-pin wiring conversion between the two connector formats. This construction focuses on reliable signal and power transfer for diagnostic communication.

Material and Build

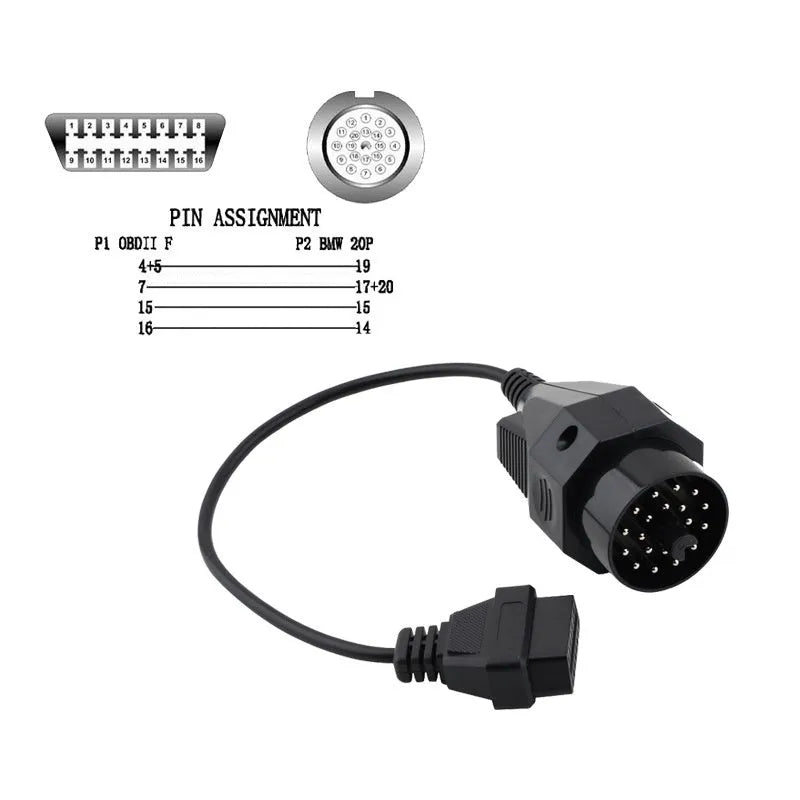

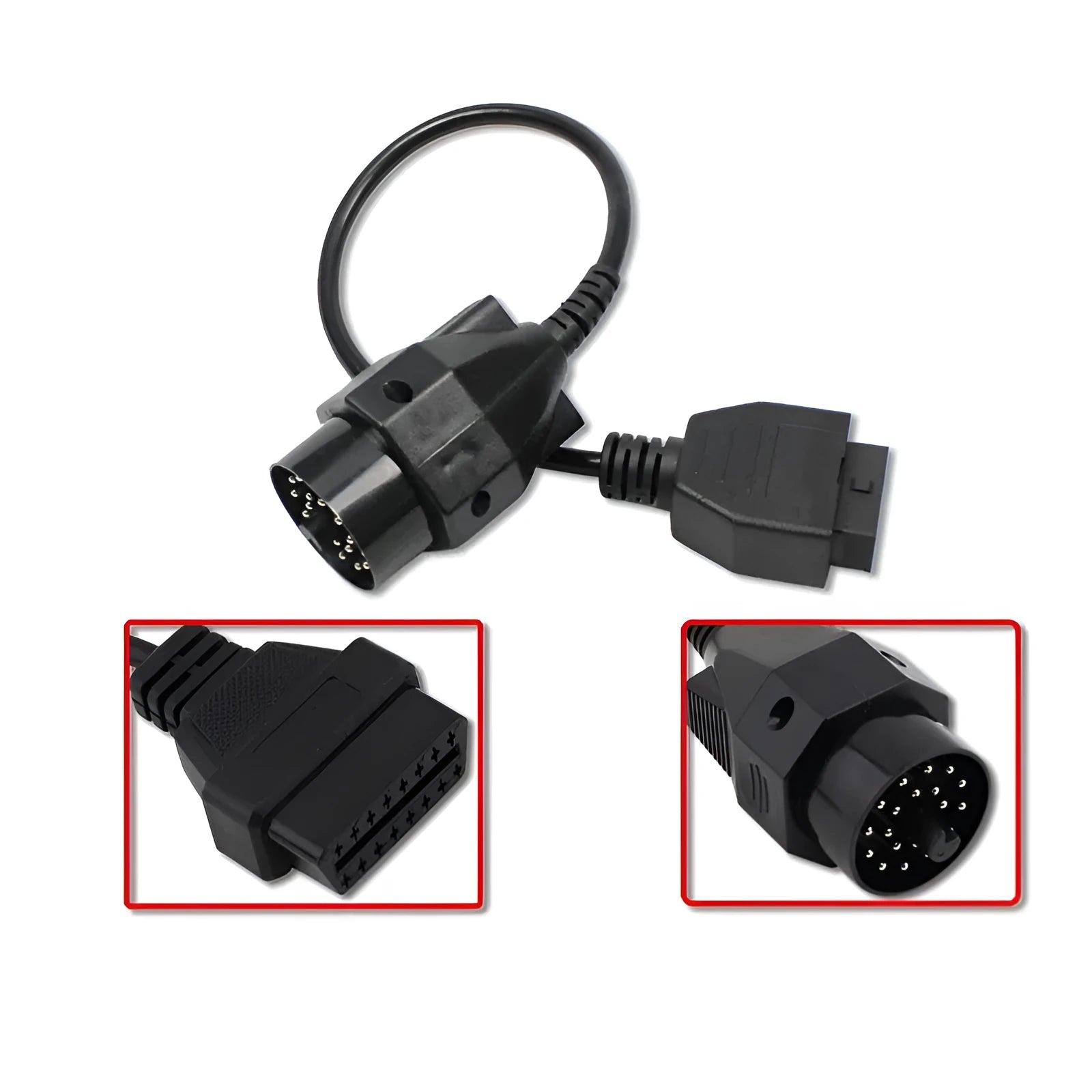

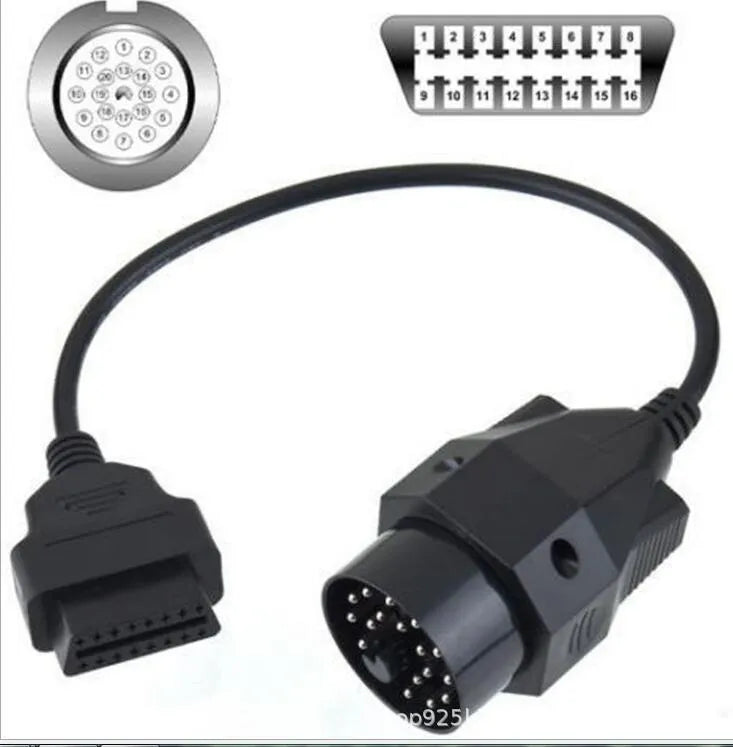

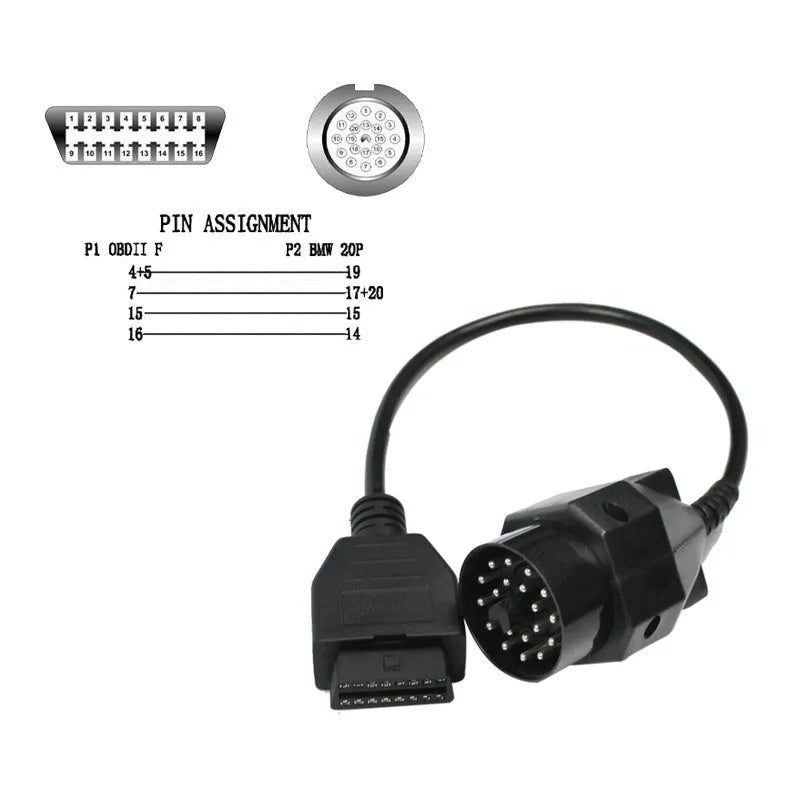

The adapter consists of a connecting cable terminated with a 20-pin connector on one end, designed to match the BMW vehicle port, and a standard 16-pin OBD2 female connector on the other. The materials used in the cable assembly are selected for their conductive properties to carry diagnostic bus signals (such as K-line or CAN bus) and for insulation to prevent short circuits. The build ensures a secure physical connection at both ends to maintain communication integrity during the diagnostic session.

Size and Practical Fit

The primary specified operational parameter is its maximum ambient temperature rating of 45°C. This rating indicates the environmental conditions under which the cable and connectors are designed to operate correctly, which covers typical workshop or garage temperatures. The cable length, while not specified, is typically sufficient to allow the diagnostic tool to be positioned conveniently while connected to the vehicle's diagnostic port, often located under the dashboard or in the engine bay.

Uses and Placement

This adapter cable has a single, clear purpose: to enable OBD2 diagnostics on compatible BMW vehicles. Its use is situational, depending entirely on the vehicle's factory-fitted diagnostic port type.

Event or Professional Use

For professional mechanics or roadside assistance technicians, this cable is a key part of a toolkit for diagnosing BMWs from certain eras. It allows them to use their existing, often expensive, multi-brand OBD2 scan tools instead of requiring a separate BMW-specific interface. This can streamline workflow in a busy garage dealing with multiple vehicle marques. The temperature specification supports use in various professional environments.

Everyday Home Use

For the DIY car enthusiast or home mechanic with a qualifying BMW, this adapter makes basic code reading and clearing accessible. It connects affordable consumer-grade OBD2 Bluetooth dongles or code readers to the car, empowering the owner to check engine lights, understand emission-related faults, or reset adaptations after simple maintenance tasks. It turns a generic tool into a BMW-compatible one for a subset of models.

Benefits and Buying Value

The value of this product lies in its specific function as an interface converter, unlocking broader tool compatibility for a niche vehicle requirement.

Reuse and Low Maintenance

As a passive cable with no software or consumable parts, it is a durable, reusable item. There are no complex care instructions; simple handling to avoid damaging the pins and keeping connectors clean is sufficient. It requires no power, configuration, or updates, offering a one-time purchase that works as long as the user owns a compatible BMW and an OBD2 tool.

Why Choose This Product

Choosing this specific adapter means selecting a product built for a confirmed BMW 20-pin line specification. It provides a dedicated solution over generic, untested adapters that may not correctly map the essential pins for BMW's diagnostic protocols. The stated 12V voltage compatibility and 45°C operating limit provide clear, practical boundaries for its safe and effective use, offering transparency about its operational limits based on the available data.
