AODI T40058 Crankshaft Rotating Sleeve: Professional Tool for Engine Timing Alignment

The AODI T40058 crankshaft rotating sleeve is a specialised, single-purpose tool designed for professional and advanced DIY mechanics working on engine timing procedures. Its core function is to provide a secure and controlled method for rotating a vehicle's crankshaft, specifically to bring the number one piston to top dead centre (TDC). Achieving exact TDC is a critical first step in servicing timing components, such as replacing belts or chains, and for correctly aligning camshafts and crankshafts. This adapter sleeve eliminates guesswork and the risk of using improvised tools that can damage the crankshaft snout or its keyway. By following the manufacturer's specified installation orientation, it ensures the crankshaft is turned in the correct direction of engine rotation, maintaining the integrity of the timing process.

Features and Construction

This tool is built around a straightforward yet precise mechanical design. It acts as an intermediary between a standard turning tool and the engine's crankshaft. Its construction and specific features are tailored to fulfil its role in a timing service procedure without unnecessary complexity.

Material and Build

The AODI T40058 sleeve is manufactured from a robust metal alloy, chosen for its strength and wear resistance in a workshop environment. It is a one-piece construction, machined to precise tolerances to ensure a snug fit on the crankshaft. The internal bore is engineered to match the diameter and profile of the target crankshaft end, preventing slippage and potential damage during use. The external surface is finished in a utilitarian grey, typical of professional-grade tools, and is shaped for a positive grip.

Size and Practical Fit

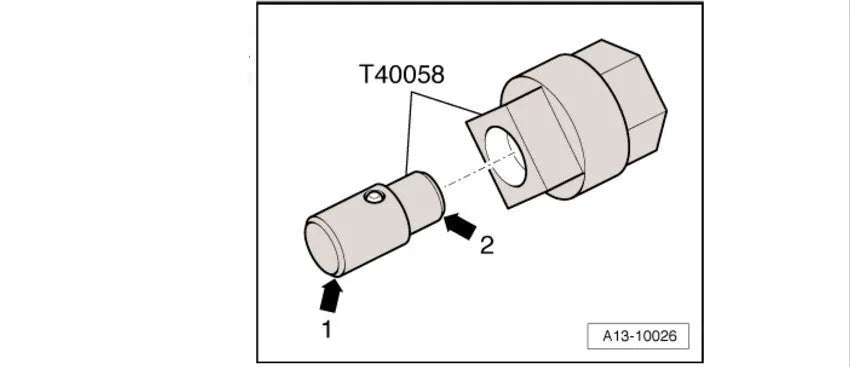

The tool's design incorporates two distinct diameter ends, which are crucial for its correct operation. The source instructions explicitly state that the large diameter end (marked by arrow 1) must point towards the engine block upon installation. Conversely, the small diameter end (marked by arrow 2) is intended to interface with the adapter or turning tool. This specific orientation is non-negotiable for the tool to function as intended. The precise dimensions are proprietary to the AODI T40058 specification, ensuring compatibility with the engines for which it is designed.

Uses and Placement

The T40058 sleeve has a clearly defined application within the broader scope of engine maintenance. It is not a general-purpose tool but is deployed at a specific point in the service procedure to achieve a vital mechanical alignment.

Event or Professional Use

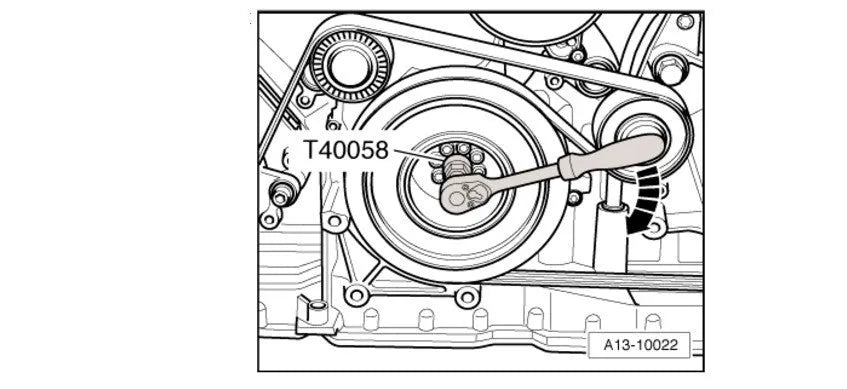

This tool is essential during major engine service events, most commonly a timing belt or timing chain replacement. Before any timing components are removed, the engine must be set to TDC to provide a reliable reference point. Mechanics use the T40058 sleeve, attached to a breaker bar or ratchet, to rotate the crankshaft slowly and deliberately until the timing marks on the crankshaft pulley and engine block align. This process is also critical when diagnosing timing-related issues or when reassembling an engine after a rebuild to verify correct cam/crank alignment.

Everyday Home Use

For the committed DIY enthusiast undertaking a timing belt change in their home garage, this tool adds a layer of security and precision. It replaces makeshift methods like turning the crankshaft via the harmonic balancer bolt, which can be awkward and risks damaging the bolt or threads. By providing a dedicated, properly fitting interface, it makes the initial alignment step safer, more controlled, and less likely to result in an error that could lead to catastrophic engine damage from improper timing.

Benefits and Buying Value

The value of the AODI T40058 lies in its specificity and the risk mitigation it offers during a high-stakes mechanical procedure. It transforms a potentially risky alignment task into a controlled, repeatable process.

Reuse and Low Maintenance

As a solid metal tool with no moving parts or consumable elements, the crankshaft rotating sleeve is designed for long-term reuse. It requires virtually no maintenance beyond being kept clean and stored in a dry place to prevent corrosion. Its durable construction means it can be used repeatedly across multiple timing jobs on compatible vehicles, representing a one-time purchase for a reliable, ongoing workshop aid. There is no calibration or setup required before each use.

Why Choose This Product

Choosing the AODI T40058 sleeve is a decision based on procedural accuracy and component protection. Its primary advantage is ensuring the crankshaft is rotated correctly—both in terms of direction and force application—preserving the crankshaft's condition. For mechanics, it saves time by providing a quick, foolproof connection. For vehicle owners, its use contributes to a correctly performed timing service, which is fundamental to engine longevity and performance. It provides peace of mind through a physically grounded, tool-based solution for a precise mechanical task.
